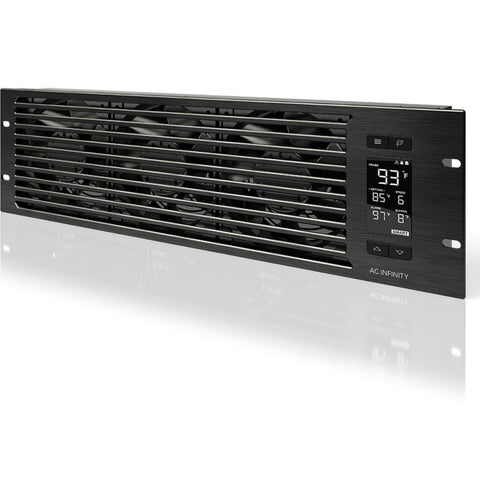

An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminium construction that takes up three rack units of space (3U). Each aluminium frame is anodized with a light-brush finish, then the corners CNC-machined and edge chamfered for a high-end professional appearance. This model holds three custom-engineered dual-ball bearing fans rated at 67,000 hours, and CE and RoHS certified. The fans are set to intake cooler air and should be positioned near the bottom of the rack; an exhaust version of this model is available, sold separately. This complete kit includes the 3U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.

Key Features

• An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
• Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
• Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
• Premium anodized aluminium construction with CNC-machined detailing for a professional appearance.
• Size: 3U Rack Space | Design: Intake | Airflow: 60 to 300 CFM | Noise: 12 to 38 dBA | Bearings: Dual Ball | Power: Wall Adapter

Wall Adapter Powered

This Cloudplate cooler is powered by the included wall adapter power supply. This powerful rack cooler is ready to plug into the wall for instant and effective cabinet airflow. No external or third-party power supplies are necessary.

Intelligent Cooling

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power-saving setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.

Performance & Applications

This 3U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 12 dBA, the fan system can be used for environments where low or minimal noise is required such as home theatre, studio, DJ, and audio video racks. A max airflow rating of 300 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow.

Installation Guide - Cabinet Cooling

All ventilation fan systems should contain an intake and an exhaust variable, which can be fans or ventilation holes. In an ideal set up, there should be a fan located near the top of the cabinet configured to exhaust out air, and a fan located near the bottom to push in air. Electronics such as receivers and computers within a cabinet will cause air to heat up. Due to natural convection, warmer air which is less dense than colder air will rise on its own. An efficient fan system helps accelerate natural convection by rapidly exhausting warmer air out the top of the cabinet while pushing colder air in at the bottom.

Cabinet fan systems that contain only one fan should have it configured to exhaust hot air out the top of the cabinet. There must be ventilation holes located elsewhere on the cabinet, preferably towards the bottom to act as an air intake. Using fans to push air out will cause negative or lowered pressure within the cabinet. Because air moves naturally from high pressure to low pressure areas, outside air will flow into the cabinet from the ventilation holes. Poorly designed systems include set-ups where there are one or more fans to exhaust air, but no other fans or ventilation holes to act as the air intake.

Includes:
1x
