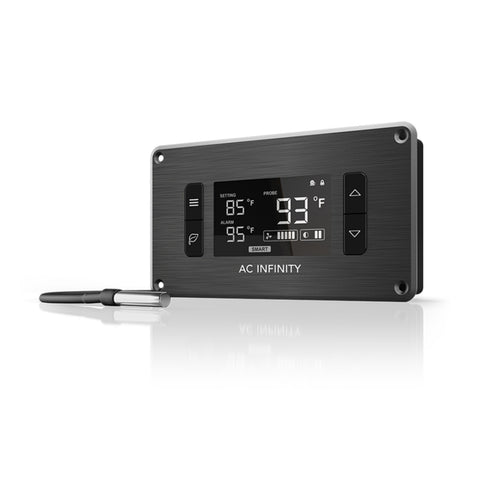

The Controller 2 is designed to control AC Infinity Airplate Series cabinet fans and Multifan Series component fans. The unit measures 13.5 x 7.9 x 2.8 cm, and contains a back lit LCD digital display, which displays temperature.
The metal frame of Controller 2 features a brushed anodized aluminium finish and can be mounted onto wall panels and cabinets up to 31.75 mm thick. On the back side are two USB fan ports, one power port, and one thermal probe port for the included 1.8m water resistant precision thermal probe. Operating temperature can be set between 0 to 60 degrees Celcius. Complete kit includes thermal controller, mounting screws, plastic stencil, instruction manual, and AC wall adaptor.
Key Features
- Intelligent thermal fan controller with on-board processor and digital LCD display.
- Controls up to six AC Infinity Cabinet and USB Fans (see below for compatibility).
- Automated programming that self-adjusts cooling power in response to changing temperatures.
- Features an alarm system, display lock, six fan speeds, two buffer options, and power failure memory.
- Includes 1.8m precision thermal probe, mounting screws, and power wall adaptor.
Controller 2 Mounting Template
(PDF, 227KB)
Thermal Programming
The controller features an on-board processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features includes an alarm system, display lock or off while programs are running, six fan speeds, three back-light settings, two buffer options, and power failure memory.
Compatibility
The Controller 1 can power up to 10 watts worth of AC Infinity Airplate and Multifan Series fans. This is approximately six fans but please note that some models contains more than one fan. For example, dual fan systems such as the Airplate S7 or Multifan S5 contains two fans. The controller can only support up to three of these models for a total of six fans. Other 5V USB fans can be compatible but may not be fully functional with the speed control feature.
Includes:
1x
