Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

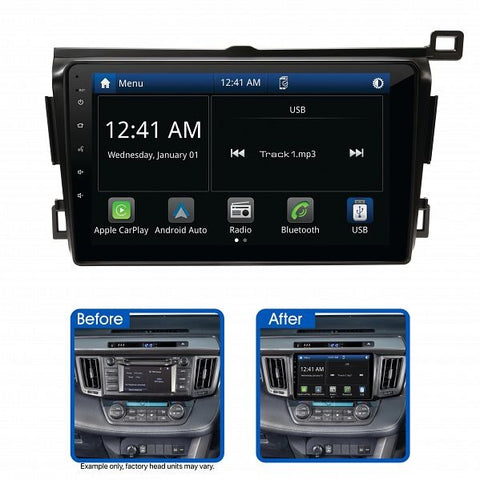

9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto The Aerpro AMATO5 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota RAV4 (2013-2017) non-amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 bands graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMATO5 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input, and the factory reverse camera (if equipped).

Important Information:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Does not suit JBL amplified vehicles.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
AUX Input Retention uses the RCA AUX input on the rear of the head unit.

Vehicle Feature Retention:

Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped)
AUX Input: Yes (if equipped)
USB Input: Yes (if equipped)
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: N/A
Other: N/A

Key Features:

To suit Toyota RAV4 (2013-2017) non-amplified vehicles
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button), USB input, AUX input, and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Dual camera inputs (AHD 720P compatible) & rear A/V input
50Wx4 Max with 8-band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control

Specifications:

LCD Display: Size: 9" Resolution: 1024x600 Touch Screen: Capacitive (G+G)
System Specifications: OS System / CPU: Linux 3.4.5 / SPHE8368U RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output: Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W MAX Power (4 Ohm): 4CH x 50W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports: USB 1 (Rear) Playback Formats: CP, AA & Media USB 2 (Rear) Playback Formats: Media USB (Rear) Power - Voltage/Amps: 5V/1.5A Each USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs: Rear A/V Input (RCA Type - 3pcs): Yes Composite Video Outputs: Yes Reverse Camera Input: Yes (720P AHD Compatible) Second Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth: Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP) Bluetooth Version: V4.2+EDR Microphone: Built-in & External Microphone ID3 Tag/Information (Artist, Album, Song): Yes HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner: AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3) FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step) AM Frequency Span (KHz): 529-1629KHz (9KHz Step) RDS: Yes FM Antenna Connector Impedance: 50 Ohm FM Tuner Connector: Motorola
RCA Preamp Outputs: RCA Preamp Output: 2-Pair (Front / Rear) Subwoofer RCA Output: Yes Subwoofer Level Control: Yes Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control: 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K) Loudness: Yes LPF - Frequencies (Sub): Yes 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features: Steering Wheel Control: Yes, with Aerpro SWC Adaptor OSD Language: English LED Colour (Buttons / Keys): White
Accessories: Power Harness: Yes with ISO/3.5mm jack AV-In Cable (RCA with Audio L/R, Video In): Yes Reverse Camera Input (with 12V power supply to the camera): Yes 4.1CH Audio Out Cable: Yes External Microphone: Included
Vehicle Compatibility: Toyota RAV4 2013 - 2018
Weight: 2.50kg

Kit Inclusions:

AM9X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
Antenna Adaptor
Camera Retention Adaptor
USB Retention Adaptor
