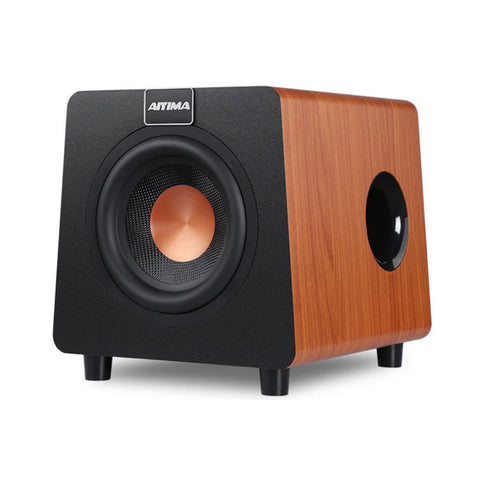

8" 150W Subwoofer
A compact powered subwoofer with a trapezoidal enclosure and fiberglass paper cone designed to enhance airflow, stability, and bass response. It supports multiple input types (RCA, AUX, LFE) and boasts efficient amplification for deep, impactful low-frequency performance.
Features:- Glass-Fibre Paper Cone: Enhances bass output with improved rigidity and tone.
- –4° Trapezoidal Design: Boosts airflow and lowers the center of gravity for improved stability and punch.
- High-Voltage Input: Accepts 60,000–80,000 mV signals for broad device compatibility.
- Multiple Inputs: Supports RCA, AUX, and LFE for versatile audio connections.
- RGB Status Indicator: LED display communicates operational state at a glance.
Specification
- Power Output: 100–150 W
- Frequency Range: 30 Hz – 300 Hz (Intercept 50–250 Hz)
- Signal-to-Noise Ratio: ? 85 dB
- Total Harmonic Distortion: < 1%
- Power Input: AC 100–240 V
- Audio Inputs: RCA, AUX, LFE (? 650 mV ± 50 mV)
- Enclosure Dimensions (H × W × D): 310 × 330 × 297 mm
- Build Materials: MDF + ABS housing
- Main Control Chip: BP1048B2
- Amplifier Chip: TPA3116D
- Bass Driver: 8? fiberglass cone with external magnetic assembly (3 ?, 100 W) with bronze horn cap
-
Included in Box:
- AIYIMA 800X subwoofer unit
- Power (AC) cable
- Audio cable
- Product specification sheet/manual
