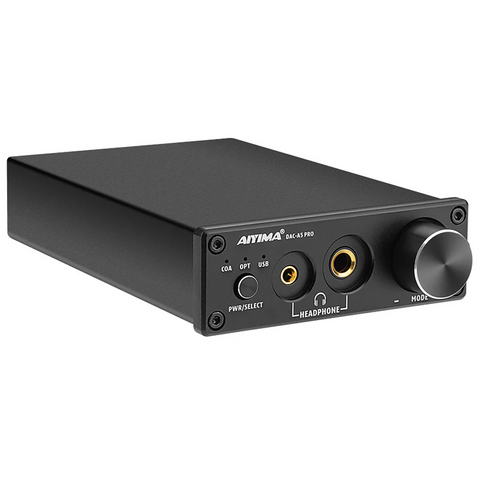

The AIYIMA DAC-A5 Pro is a high-resolution digital-to-analog converter and headphone amplifier designed for audiophiles seeking superior sound quality. Featuring the ESS9018K2M DAC chip and TPA6120 headphone amplifier, it supports multiple input options including USB, optical, and coaxial, delivering up to 24-bit/192kHz audio. With dual headphone outputs and RCA line-out, it offers versatile connectivity in a compact aluminum chassis.
Key Features:
- High-performance ESS9018K2M DAC chip for superior audio quality
- TPA6120 headphone amplifier with NE5532 op-amp for powerful output
- Multiple input options: USB, optical, and coaxial
- Supports PCM audio up to 24-bit/192kHz
- Dual headphone outputs: 3.5mm and 6.35mm
- RCA line-out for connecting to external amplifiers or speakers
- Compact and durable aluminum alloy housing
Specifications:
- Model: AIYIMA DAC-A5 Pro
- DAC Chipset: ESS9018K2M
- Headphone Amplifier: TPA6120 with NE5532 op-amp
- Input Sampling Rate: Up to 24-bit/192kHz (USB, Optical, Coaxial)
- Signal-to-Noise Ratio (SNR): ≥105dB
- Total Harmonic Distortion (THD): 0.01%
- Headphone Output Power: 400mW @ 32Ω
- Headphone Impedance Support: 16-300Ω
- Audio Inputs: USB, Optical, Coaxial
- Audio Outputs: 3.5mm and 6.35mm headphone jacks, RCA line-out
- Power Supply: DC 12V
- Dimensions: 147 x 98 x 31 mm
- Weight: 0.35 kg
- What's in the Box:
- 1 x AIYIMA DAC-A5 Pro Headphone Amplifier
- 1 x PC-USB Cable
- 1 x DC 12V Power Adapter
- 1 x User Manual
