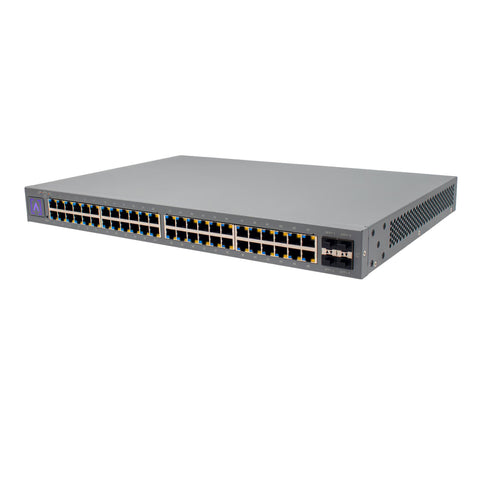

The Alta Labs S48-APOE is the ultimate high-performance switch for demanding enterprise, commercial, and hospitality environments. It delivers maximum performance and flexibility with full Power over Ethernet (PoE+) connectivity across all 48 ports, supported by a massive 740W PoE budget. This allows you to power a multitude of network devices such as access points, IP cameras, and VoIP phones without the need for individual power supplies, simplifying your entire installation.

Engineered for speed and reliability, the S48-APOE features a versatile combination of sixteen 2.5Gbps Ethernet ports to handle high-bandwidth devices and thirty-two 1Gbps Ethernet ports for standard connections. For high-capacity network backbones and uplinks, it includes four 10Gbps SFP+ ports, providing lightning-fast fibre or copper connectivity. This powerful port configuration ensures there are no bottlenecks, even in the busiest networks.

Management is made effortless with the scalable, cloud-based platform and the intuitive Alta Labs mobile app. The switch includes built-in Bluetooth functionality, allowing for seamless and quick device setup directly from your mobile device. You can monitor and manage multiple sites with ease, customising dashboards and accessing real-time status snapshots from anywhere in the world.

The platform ensures geographically optimised connectivity and ultimate convenience. Packed with advanced enterprise-grade features, the S48-APOE gives you granular control over your network. It supports VLAN stacking (Q-in-Q), ingress and egress rate limiting for bandwidth management, IGMP snooping to optimise multicast traffic, and 802.1X authentication for enhanced security. Built-in network loop detection also helps you maintain a stable and high-performing network by quickly identifying and resolving potential issues.

FEATURES

Full 802.3at PoE+ on all 48 Ethernet ports
Powerful 740W total PoE budget
(16) 2.5Gbps Ethernet ports for high-speed devices
(32) 1Gbps Ethernet ports
(4) 10Gbps SFP+ ports for high-capacity uplinks
Bluetooth functionality for easy setup via the mobile app
Scalable cloud-based management accessible from anywhere
VLAN Stacking (Q-in-Q) for advanced network segmentation
Egress and Ingress rate limiting to control bandwidth
IGMP Snooping to optimise multicast performance
802.1X for enhanced network authentication
Built-in network loop detection
Flexible mounting options (rack and wall)

SPECIFICATIONS

Switching Capacity:240Gbps
Non-blocking Throughput:120Gbps
Forwarding Rate:178.6Gbps
MAC Address Table Size:32K
Packet Buffer:16Mbit
PoE Standard:802.3af/at
Max PoE Power per Port:30W
Power Supply:Internal 100-240VAC, 50-60Hz
Max Power Consumption (Full PoE):890W
Max Power Consumption (No PoE):68W
Management:Alta Labs Cloud, Mobile App, Factory Reset Button
Bluetooth:2.4GHz BLE for setup
Dimensions:440 x 310 x 44 mm
Weight:4.99kg
Operating Temperature:-5 to 50 °C
Certifications:CE, FCC, IC

WARRANTY

2-Year Limited Warranty
