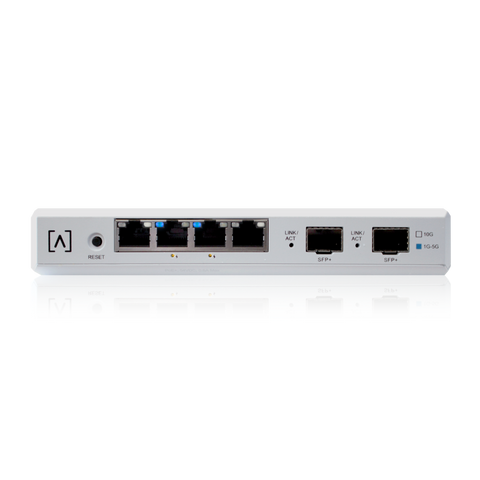

Introducing the Alta Labs Route10, a high-performance 10 Gbps router designed to meet the demands of modern networks. With four autosensing Ethernet ports supporting up to 2.5 Gbps and two SFP+ ports for high-capacity fibre or copper connections up to 10 Gbps, the Route10 ensures your network operates at optimal performance levels.

Equipped with PoE+ connectivity on ports 2 and 3, the Route10 supports the 802.3at PoE+ standard and is backwards compatible with 802.3af PoE. This feature allows you to power Alta Labs Access Points and other compatible devices directly through the router, simplifying your network setup and reducing the need for additional power sources.

The Route10's sleek, compact form factor is complemented by a quad-core Qualcomm 2.2 GHz processor, ensuring efficient data processing and network management. Its intuitive management interface is easily accessible via mobile app or web browser, allowing you to monitor and manage your network from the convenience of your mobile device.

FEATURES

• Four autosensing Ethernet ports supporting up to 2.5 Gbps
• Two SFP+ ports for high-capacity fibre or copper connections up to 10 Gbps
• PoE+ connectivity on ports 2 and 3
• Quad-core Qualcomm 2.2 GHz processor
• Sleek, compact form factor
• Intuitive management interface accessible via mobile app or web browser

SPECIFICATIONS

• Dimensions: 180 mm x 110 mm x 29.8 mm
• Weight: 0.46 kg
• Enclosure Material: Top cover: polycarbonate; Bottom cover: milled aluminium
• Interface: Four autosensing 2500/1000/100/10 Mbps RJ45 ports, two 10 Gbps/1.25 Gbps SFP+ ports
• Processor: Quad-core Qualcomm 2.2 GHz
• Power Supply: Universal AC, 100–240 VAC, 50–60 Hz external
• Maximum Input Power Consumption: 70 W
