Name

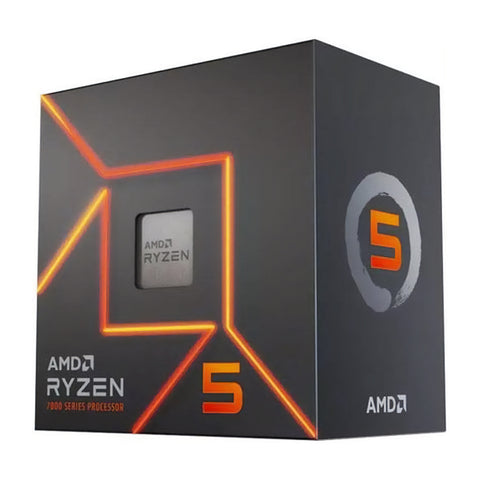

AMD Ryzen „¢ 5 7500F

Family

Ryzen

Series

Ryzen 7000 Series

Form Factor

Desktops, Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Former Codename

Raphael AM5

Processor Architecture

Zen 4

# of CPU Cores

6

Multithreading (SMT)

Yes

# of Threads

12

Max. Boost Clock

Up to 5 GHz

Base Clock

3.7 GHz

L1 Cache

384 KB

L2 Cache

6 MB

L3 Cache

32 MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm ²

I/O Die (IOD) Size

122mm ²

Package Die Count

2

Unlocked for Overclocking

Yes

AMD EXPO „¢ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen „¢ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution

AMD Wraith Stealth

Max. Operating Temperature (Tjmax)

95 °C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

CONNECTIVITY

Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 3.2 Gen 1 (5Gbps)

0

Native USB 2.0 (480Mbps)

1

Native SATA Ports

0

PCI Express ® Version

PCIe ® 5.0

Native PCIe ® Lanes (Total/Usable)

28 , 24

Additional Usable PCIe Lanes from Motherboard

X670E12x Gen4

X67012x Gen4

B650E8x Gen4

B6508x Gen4

A6204x Gen3

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

128 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1RDDR5-5200

2x2RDDR5-5200

4x1RDDR5-3600

4x2RDDR5-3600

ECC Support

Yes (Requires mobo support)

GRAPHICS CAPABILITIES

Graphics Model

Discrete Graphics Card Required

KEY FEATURES

Supported Technologies

AMD EXPO „¢ Technology , AMD Ryzen „¢ Technologies
