SPECIFICATIONS:

GENERAL SPECIFICATIONS

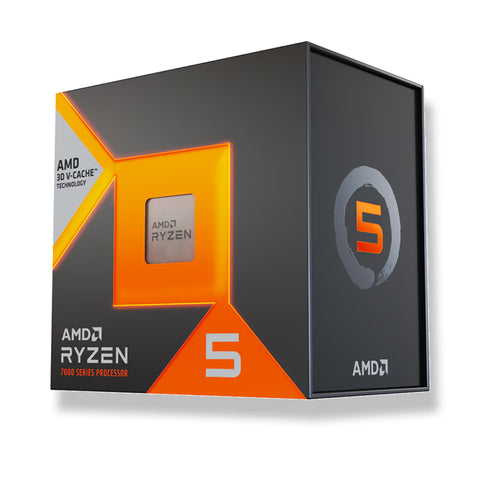

Name	AMD Ryzen ¢ 5 7500X3D
Family	Ryzen
Series	Ryzen 7000 Series
Form Factor	Desktops, Boxed Processor
Market Segment	Enthusiast Desktop
AMD PRO Technologies	No
Former Codename	Raphael AM5
Processor Architecture	Zen 4
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 4.5 GHz
Base Clock	4 GHz
L1 Cache	384 KB
L2 Cache	6 MB
L3 Cache	96 MB
Default TDP	65W
Processor Technology for CPU Cores	TSMC 5nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
CPU Compute Die (CCD) Size	71mm ²
I/O Die (IOD) Size	122mm ²
Package Die Count	2
AMD EXPO ¢ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen ¢ Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)	Not Included
Recommended Cooler	Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)	89 °C
*OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
CONNECTIVITY
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 3.2 Gen 1 (5Gbps)	0
Native USB 2.0 (480Mbps)	1
PCI Express ® Version	PCIe ® 5.0
Native PCIe ® Lanes (Total/Usable)	28 , 24
NVMe Support	Boot , RAID0 , RAID1 , RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	128 GB
System Memory Subtype	UDIMM
MAX MEMORY SPEED
2x1R	DDR5-5200
2x2R	DDR5-5200
4x1R	DDR5-3600
4x2R	DDR5-3600
ECC Support	Yes (Requires mobo support)
GRAPHICS CAPABILITIES
Graphics Model	AMD Radeon ¢ Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C ® DisplayPort ¢ Alternate Mode	Yes
KEY FEATURES
Supported Technologies	AMD EXPO ¢ Technology , AMD Ryzen ¢ Technologies
