Family

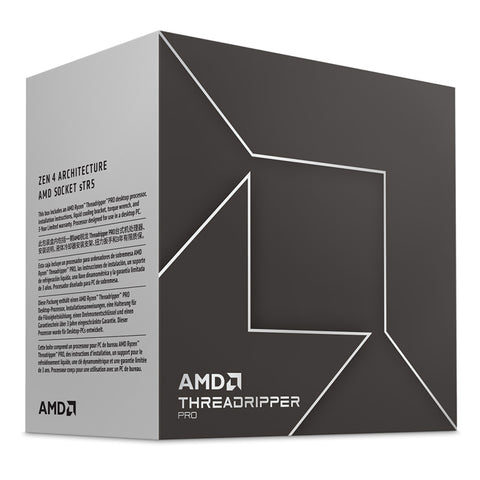

Ryzen Threadripper Pro

Series

Ryzen Threadripper Pro 7000 WX-Series

Form Factor

Desktops

Number of CPU Cores

96

Number of Threads

192

Max. Boost Clock

Up to 5.1 GHz (Max boost for AMD processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150.)

Base Clock

2.5 GHz (Represents the average effective base frequency of all cores.)

L2 Cache

96 MB

L3 Cache

384 MB

Default TDP

350 W

L1 Cache

6144 KB

Processor Technology for CPU Cores

TSMC 5 nm FinFET

Unlocked for Overclocking

Yes (AMD`s product warranty does not cover damages caused by overclocking, even when overclocking is enabled via AMD hardware and / or software. GD-26.)

CPU Socket

sTR5

Thermal Solution (PIB)

Not Included

Max. Operating Temperature (Tjmax)

95 °C

OS Support

Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

PCI Express ® Version

PCIe ® 5.0

Memory Type

DDR5

Memory Channels

8

System Memory

Up to 5200 MT/s

Graphics Model

Discrete Graphics Card Required

Supported Technologies

AMD EXPO Technology , AMD PRO technologies , AMD Ryzen Technologies
