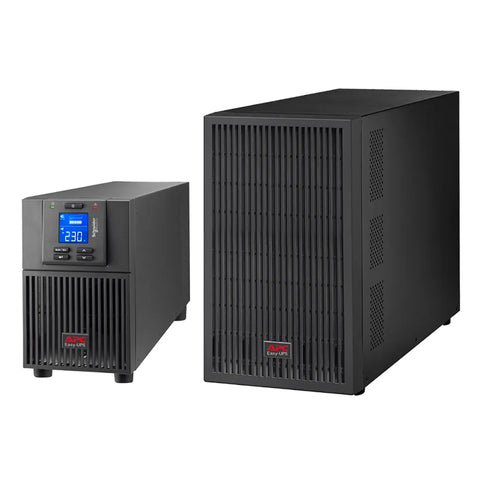

Product Summary

General
- UPS type: On‑Line, sine‑wave output
- Power rating: 1800 W / 2000 VA (max configurable)
- Efficiency: 88 % at full load
- Crest factor: 3 : 1, Harmonic distortion ≤ 3 %
- Bypass: Internal (automatic & manual)

Electrical Input / Output
- Input voltage: 220‑240 V AC (230 V nominal), IEC 60320 C20 connector
- Input voltage limits: 105‑300 V @ 40 % load, 180‑285 V @ full load
- Network frequency: auto‑sensing 40‑70 Hz, output 50/60 Hz ± 3 Hz synced to mains
- Output voltage: 220‑240 V AC (configurable 220/230/240 V), IEC 60320 C13 (4 outlets)
- Runtime at 1800 W load: 29 min 13 s
- Half‑load (800 W) runtime: 12 min

Battery
- Type: Lead‑acid (external, included)
- Voltage: 72 V
- Full charge time: ~5.5 h
- Battery life: 3‑5 years
- Charger power: 525 W (rated)
- Extended runtime option: 1 additional battery slot (none installed)

Physical / Mechanical
- Dimensions (H × W × D): 336 mm × 335 mm × 425 mm
- Net weight: 45.8 kg
- Colour: Black (RAL 7010)
- Mounting: Front‑mounted, vertical tower, not rack‑mountable (no preference)
- Free module slots: 1

Connectivity & Controls
- Control panel: Multifunction LCD status & control console
- Interfaces: Serial port, USB port, expansion slot (available)
- USB compatible: Yes
- Alarm: Low‑battery, overload continuous tone

Environmental
- Operating temperature: 0 °C – 40 °C
- Storage temperature: –20 °C – 50 °C
- Relative humidity: 0 % – 95 % non‑condensing (operating & storage)
- Altitude: Operates up to 3000 m, stores up to 15000 m
- IP rating: IP20
- Acoustic level: 53 dBA
- Heat dissipation: 759 Btu/h

Safety & Standards
- Certifications: CE, UKCA, TISI
- Standards: EN/IEC 62040‑1:2019/A11:2021, EN/IEC 62040‑2:2006/AC:2006, EN/IEC 62040‑2:2018

Additional Features
- Surge energy rating: 600 J
- Cable: 1 × 1.5 m power cable

This UPS provides on‑line double conversion protection for a 1800 W load with configurable output voltage, a compact tower design, and standard connectivity options.
