A 5-minute installation to free yourself from the tedious task of setting your roller shades every day.

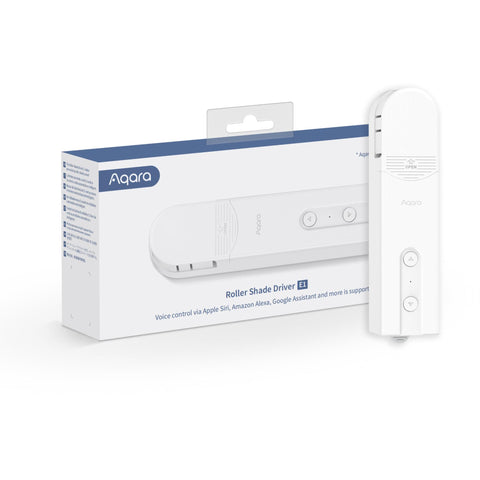

The Aqara Roller Shade Driver E1 is a retrofit roller shade controller that does not require complicated installation. It can operate your existing roller shades by manipulating the beaded cord. No dedicated wiring is necessary, and it can function wirelessly from the built-in battery or by plugging it into a power supply using the provided USB Type-C cable.
Key Features
All-Round Compatibility1
It is compatible with the most popular smart home ecosystems and can be voice controlled. It supports Apple HomeKit, Google Home, Amazon Alexa, and Samsung Smart Things2.
Matter Compatability1
This device is Matter-compatible over the Zigbee protocol. To enable Matter, an Aqara Hub with the latest software is required.
Easy Installation
Simply mount the device on the wall, attach the adapter, insert your roller shade's beaded cord, and you're all set to connect the device.
Zigbee 3.0 Protocol
You can enjoy the advantages of the fastest, most stable, and energy-efficient smart home technology, which offers improved stability and compatibility with more standardised protocols, longer support, and additional features.User-Defined Opening/Closing: You can pre-set several desired open/close percentages and switch between them easily.
Up to 2 Months Battery Life3
Thanks to Aqara’s battery-saving technology, it achieves industry-leading battery life, so you don't need to worry about charging the device every few weeks.
USB Type-C for Charging or Constant Power Supply
You can choose between two installation modes: wired and wireless. For either charging or powering the device constantly the Aqara Roller Shade Driver can be charged with a USB-C Cable.
One-Button Control
Thanks to the Aqara Home app, you can control your roller shade with a single button press, such as using the Aqara Mini Switch.
Smart Home Automations
Once you connect the device to the Aqara Home app and configure the automations, you can forget about manual operation – it will work automatically!
4 Adapters for Different Types of Beaded Cords
It supports most roller shades with beaded cords thanks to the variety of included adapters.
Automation Capabilities
1. The roller shade will automatically close when you go to bed.
IF the motion detector detects you in the bed
THEN close the curtains.
The Motion Sensor located at the top of your bed will detect when you are going to bed and trigger the Roller Shade Driver E1 to close your roller blinds, making your sleep more comfortable.
(Requires: Aqara Roller Shade Driver E1 + Hub + Motion Sensor)
2. Roller shades will automatically roll up according to the schedule.
IF it is sunrise
THEN slowly open the curtains.
On weekday mornings, the roller shades will roll up just before you wake up, creating a more pleasant wake-up experience. However, on weekends, they will remain down to allow you to sleep in a bit longer.
(Requires: Aqara Roller Shade Driver E1 + Hub)
Specifications
Model: RSD-M01
Wireless Protocol: Zigbee 3.0 IEEE 802.15.4
Dimensions: 42×37×165 mm (1.69×1.52×6.89 in.)
Operating Temperature: -10°C ~ 55℃ (14°F ~ 131°F)
Operating Humidity: 0-95% RH, no condensation
Battery Type: Lithium battery (not replaceable)
Rated Input: 5V-1A
Total Power Consumption: 5W
Standby Time: Two months (based on controlling a roller shade of 1.8m x 1.8m up and down once a day)
Standard: GB/T 12350-2009
Supports: Aqara Home, Apple HomeKit1, Google Home1, Amazon Alexa1, and Samsung Smart Things3
What’s In The Box?
1x Aqara Roller Shade Driver E1
2x Screw
2x Expansion Tube
1x Double-Faced Adhesive Tape
3x Spare Rotating Plate
1x USB-C to USB-A Cable
Disclaimers:
1 Requires a compatible Aqara Hub
2 Requires Smart Things Hub and Aqara Hub
3 Based on controlling a roller shade of 1.8m x 1.8m up and down, once a day
* Supposed to roll and unroll a roller shade of 1.8m*1.8m once a day
