Overview

Arturia MiniFuse 1 is an easy-to-use audio & MIDI interface that gives you pro-grade sound quality, smart connectvity, and a curated selec?on of the industry’s best creatve software. From guitar tracking to podcast recording, this is your solu?on for every type of audio creaton.

MiniFuse comes from the award winning Arturia AudioFuse line of studio audio interfaces. Classcompliant & Bus-powered means you can plug in and go, and you won’t need an additonal power supply as it’s USB powered. Recording has never been easier.

Key Features

Simply the best sound
For audiophiles, MiniFuse boasts a 110db dynamic range and a class leading equivalent input noise of -129dB. For everyone else, that means that every recording you make sounds incredible, with rich dynamics, clear noise-free signal, and studio-grade quality - you can’t go wrong.

Tough, portable design
Break the mold and take your studio on the go. MiniFuse is not only compact and lightweight; its rugged aluminium casing can handle the mobile producer’s lifestyle. Put it in your bag, get out there, and find the sound you’ve been looking for.

Fully operational
Whether you're using a laptop or desktop, MiniFuse can work for you. PC or Mac, connect it and enjoy total recording freedom. Better still, with the MiniFuse Control Center app, you can control its inputs, outputs, settings, and firmware updates in one place.

Inspiration on the house
Keep your creativity fresh and your inspiration flowing with step-by-step music production tutorials, mixing hacks, and Ableton project templates designed by artists, producers, and beatmakers, featuring the software that’s included with MiniFuse. Updated frequently, no subscription required and free with your MiniFuse.

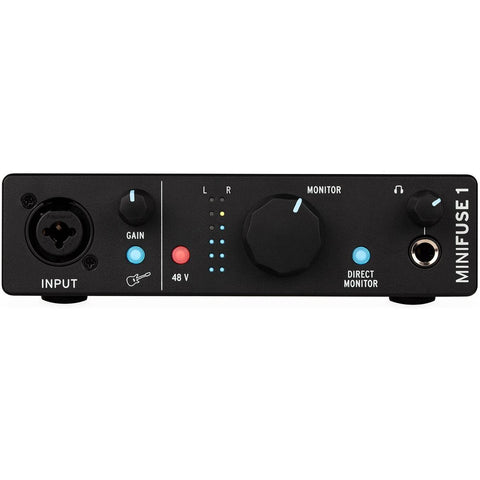

- Combo XLR / 1/4” input
- Backlit controls: MiniFuse’s knobs light up in response to your input, turning red when the signal is too high
- Gain control: Adjust the level of your connected mic or instrument
- Instrument level switch: Switch between line and instrument levels for clear, consistent signal
- Monitor level control: Adjust the main output volume for your connected speakers
- 48V phantom power switch - For microphones that need power, MiniFuse can provide
- Headphone output - Connect your headphones of choice via 1/4” jack
- Headphone level control: Adjust the output volume for your connected headphones
- USB-C connection: Connect to your computer with universal & speedy USB-C
- USB-A hub connection (250mA max.): Attach any standard USB device such MIDI controllers and hardives

Included Software
- Arturia's Pre 1973, Rev PLATE-140, Delay TAPE-201, Chorus JUN-6 audio effects
- Arturia's Analog Lab Intro containing thousands of ready-to-use instruments and sounds
- Ableton Live Lite
- NI Guitar Rig 6 LE
- 3-month complimentary subscription to Splice
- 3-month complimentary subscription to Auto-Tune Unlimited
- Exclusive Ableton Live Lite sessions curated by producers around the globe

Specifcations

Line Inputs
- Input impedance: 16kΩ
- Maximum input level: +22dBu
- Gain range: 56dB
- Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
- Dynamic range: 110dB typical (A-weighted)
- THD+N @ 1kHz: -100dB typical (un-weighted)
- Cross-talk @ 1kHz: -116dB
Instrument Input
- Input impedance: 1MΩ on Tip
- Maximum input level: +11.5dBu
- Gain range: 56dB
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 110dB typical (A-weighted)
- THD+N @ 1kHz: -91dB typical (un-weighted)
Microphone Preamps
- Input impedance: 2.5kΩ
- Maximum input level: +9dBu
- Gain range: 56dB
- Equivalent Input Noise (EIN): -129dB typical (A-weighted)
- Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
- Dynamic range: 110dB typical (A-weighted)
- THD+N @ 1kHz: -100dB typical (un-weighted)
- Cross-talk @ 1kHz: -116dB
Speakers Output
- Output impedance: 94Ω
- Maximum output level: +12dBu
- Frequency response 20-20kHz: +/-0.09dB
- Dynamic range: 107.5dB typical (A-weighted)
- THD+N @ 1kHz: -101dB typical (un-weighted)
Headphones Output
- Output impedance: 10Ω
- Maximum output level: +11.4dBu
- Frequency response 20-20kHz: +/-0.09dB
- Dynamic range: 104dB typical (A-weighted)
- Power @ 33ohm: 137mW
Supported Sample rates
- 44.1kHz, • 48kHz, • 88.2 kHz,
- 96kHz, • 176.4kHz, • 192 kHz
Size (WxDxH): 200 x 100 x 43mm
Weight : 431g

Software Requirements
Apple: OS X 10.10 or later (64 bit)
64-bit Intel Core or AMD multi-core processor (i5 processor or faster recommended) with 4 GB RAM (8 GB+ recommended)
Windows: Windows 7 (SP1) or later (64-bit)
64-bit Intel Core or AMD multi-core processor (i5 processor or faster recommended) with 4 GB RAM (8 GB+ recommended)
