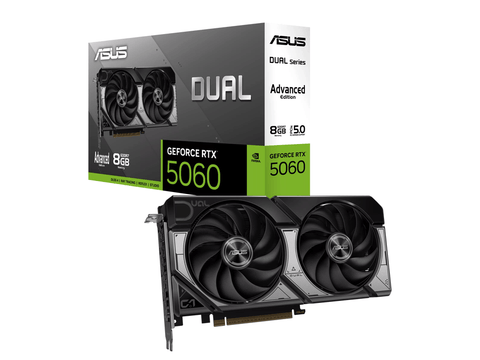

The ASUS Dual GeForce RTX 5060 OC Advanced delivers factory-overclocked speeds up to 2,587 MHz in OC mode alongside 8GB of high-speed 28 Gbps GDDR7 memory on a compact 228mm footprint. Built on the PCI Express 5.0 architecture and equipped with 3,840 CUDA cores, this graphics card combines modern memory bandwidth with low power overhead for compact high-performance gaming setups.

Ultra-Fast GDDR7 Memory and PCIe 5.0 Bandwidth

At the heart of the ASUS Dual GeForce RTX 5060 OC Advanced is 8GB of next-generation GDDR7 memory operating across a 128-bit bus. Pushing data transfer speeds up to 28 Gbps, this memory architecture substantially increases effective bandwidth over previous GDDR6 generations. Higher memory bandwidth ensures high-resolution textures and complex geometry stream into the GPU without memory bottlenecking during intense gameplay or heavy rendering tasks.

The card utilises the PCI Express 5.0 bus standard, doubling available interface throughput compared to older PCIe 4.0 slots. When installed on compatible motherboards, this high-speed connection enables rapid data transfer between system RAM, storage devices, and the GPU, keeping latency low when loading large game assets and detailed 3D environments.

Factory Overclocked Core Performance and AI Processing

Equipped with 3,840 CUDA cores, the GPU runs at a factory-tuned 2550 MHz Boost Clock in Default Mode, with an elevated 2587 MHz OC Mode Clock available through software tuning. This extra clock speed translates directly into higher, more stable frame rates in modern titles at 1080p and 1440p resolutions.

In addition to graphics rendering, the card delivers 614 TOPs of AI performance. This dedicated processing capacity accelerates modern AI-assisted workflows, real-time image generation, background noise removal, and frame-generation technologies without weighing down traditional rasterisation performance. Support for OpenGL 4.6 ensures full software compatibility with legacy creative suites and 3D modeling tools.

Compact 228mm Footprint with Easy 8-Pin Power Integration

Engineered for broad chassis compatibility, the ASUS Dual GeForce RTX 5060 OC Advanced measures just 228 x 123 x 50 mm. Its tight 2.5-slot profile allows it to fit comfortably into smaller micro-ATX and mini-ITX cases where larger triple-fan graphics cards cannot physically fit. The dual-fan cooling arrangement provides direct airflow across the heatsink to keep operating temperatures controlled during extended gaming sessions.

Power delivery is kept straightforward and accessible. Rather than requiring specialized power adapters, the card runs off a single standard 8-pin PCIe power connector and operates efficiently with a recommended 550W power supply. This makes it an ideal drop-in upgrade for existing desktop PCs without needing to replace the power supply unit.

Next-Generation Display Connectivity for High-Refresh Setups

The ASUS Dual GeForce RTX 5060 OC Advanced features advanced output options capable of driving multi-monitor workstation layouts or high-refresh gaming displays. The physical I/O layout includes three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous monitors at a maximum digital resolution of 7680 x 4320 (8K).

With HDCP 2.3 support integrated across all physical display connections, streaming protected high-definition and 4K media content remains smooth and reliable across connected displays.
