Graphic Engine

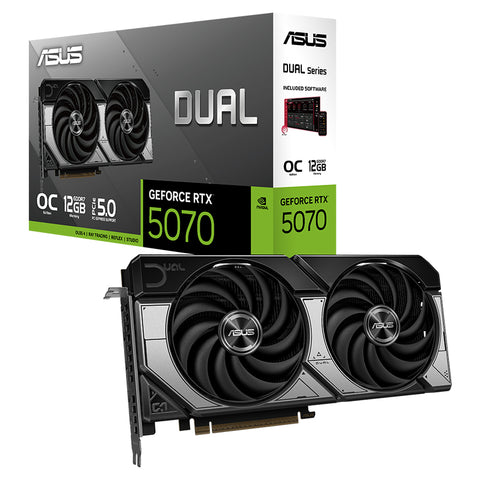

NVIDIA ® GeForce RTX ™ 5070

AI Performance

1000 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL ®4.6

Video Memory

12GB GDDR7

Engine Clock

OC mode: 2572MHz

Default mode: 2542MHz (Boost Clock)

CUDA Core

6144

Memory Speed

28 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual

1 x Thank You Card

1 x Adapter Cable (1 to 2)

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

249 x 126 x 50.6 mm

Recommended PSU

750W

Power Connectors

1 x 16-pin

Slot

2.53 Slot

SFF Ready

Compatible

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the €œChoose By Wattage feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* Maximum Display Support is specifically applied to simultaneous display situation.
