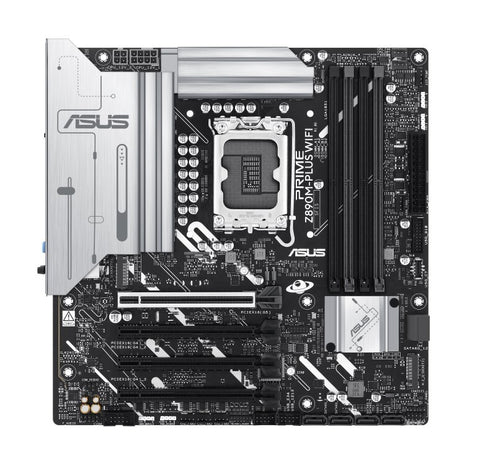

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

SPECIFICATIONS:

CPU:

• Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset:

• Intel® Z890 Chipset

Memory:

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III(AEMPIII)

Graphics:

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  ***Supports 4K@60Hz as specified in HDMI 2.1.
  ****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.

Special Features

• ASUS 5X PROTECTION III
  • DIGI+ VRM (- Digital power design with DrMOS)
  • LANGuard
  • Overvoltage Protection
  • SafeSlot
  • Stainless-Steel Back I/O
• ASUS Q-Design
  • Q-Antenna
  • Q-Dashboard
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
• Aura Sync
  • Aura RGB header
  • Addressable Gen 2 headers
