| Model | Pro WS WRX90E-SAGE SE |
| CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series |
| • Refer to ASUS website for full CPU list | |
| • Longer boot time may occur with 9000 series (memory calibration – normal behavior) | |
| Chipset | AMD WRX90 Chipset |
| Memory | 8 x DIMM slots, DDR5 ECC Registered Memory |
| 8-Channel Memory Architecture | |
| • Memory support depends on CPU & configuration | |
| Expansion Slots | 6 x PCIe 5.0 x16 slots |
| 1 x PCIe 5.0 x16 slot (x8 mode) | |
| • Supports Threadripper PRO 9000 & 7000 WX-Series | |
| Storage | 4 x M.2 (PCIe 5.0 x4) |
| 2 x SlimSAS (PCIe 4.0 x4 NVMe) | |
| 4 x SATA 6Gb/s | |
| • Supports RAID 0/1/5/10 (PCIe & SATA) | |
| Ethernet | 1 x Realtek 1Gb (Management LAN – AST2600) |
| 1 x Intel Dual 10Gb Ethernet | |
| ASUS LANGuard | |
| USB (Rear) | 2 x USB4 40Gbps (Type-C) |
| 6 x USB 10Gbps (Type-A) | |
| 1 x USB 2.0 | |
| USB (Front) | 1 x USB 20Gbps (Type-C) |
| 1 x USB 5Gbps header (2 ports) | |
| 2 x USB 2.0 headers (4 ports) | |
| Audio | Realtek ALC1220P HD Audio |
| • 5.1 Surround support | |
| • 120dB SNR playback / 113dB recording | |
| • 32-bit/192kHz playback | |
| Back Panel I/O | USB4, USB 10Gbps, USB 2.0 |
| 1 x VGA | |
| 2 x mini DisplayPort IN | |
| Intel Dual 10Gb LAN | |
| Realtek 1Gb LAN | |
| 2 x Audio jacks | |
| BIOS FlashBack™ button | |
| Clear CMOS button | |
| Internal Connectors (Cooling) | CPU Fan, CPU OPT, W_PUMP+ |
| 5 x Chassis Fan | |
| 2 x VRM Fan | |
| 1 x M.2 Fan | |
| Power Connectors | 24-pin Main Power |
| 2 x 8-pin +12V | |
| 2 x 8-pin PCIe to CPU | |
| 2 x 8-pin PCIe | |
| Internal Storage | 4 x M.2 |
| 4 x SATA | |
| 2 x SlimSAS | |
| Special Features | ASUS 5X Protection III |
| Q-Design (Q-Latch, Q-Code, Q-LED, etc.) | |
| Thermal Solution (VRM heatsink, M.2 heatsinks) | |
| EZ DIY Features (BIOS FlashBack™, SafeSlot, SafeDIMM) | |
| BMC Features | IPMI switch, BMC LAN switch |
| microSD slot | |
| VGA management (AST2600) | |
| Multiple LED & PSU headers | |
| Software | Armoury Crate |
| Fan Xpert 4 | |
| Adobe CC Trial | |
| Norton 360 (60 days) | |
| WinRAR Trial | |
| BIOS | 256 Mb Flash ROM |
| UEFI AMI BIOS | |
| Manageability | WOL by PME |
| PXE (UEFI mode) | |
| Accessories | PCIe power cables |
| Mini DisplayPort cables | |
| SATA cables | |
| Thermistor cable pack | |
| M.2 accessories | |
| Quick start guide | |
| Operating System | Windows 11 |
| Windows 10 64-bit |
Description
Product specifications
- Chipset: AMD WRX80
- CPU socket: AMD Socket STR5
- Contains button battery: Yes
- Manufacturer's warranty: 36 months
- Motherboard form factor: SSI-EEB
ASUS

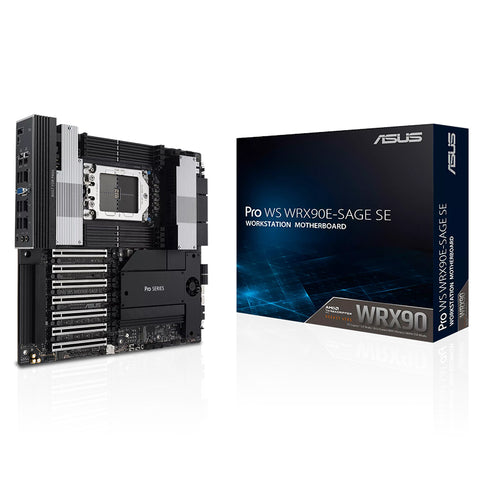

Asus Pro WS WRX90E-Sage SE sTR5 EEB Workstation Motherboard (PRO WS WRX90E-SAGE SE)
Price:
$2752
Key features
- Motherboard CPU Socket : AMD Socket STR5
- Workstation
- 2x SlimSAS ports
Getting your item
Delivery available
