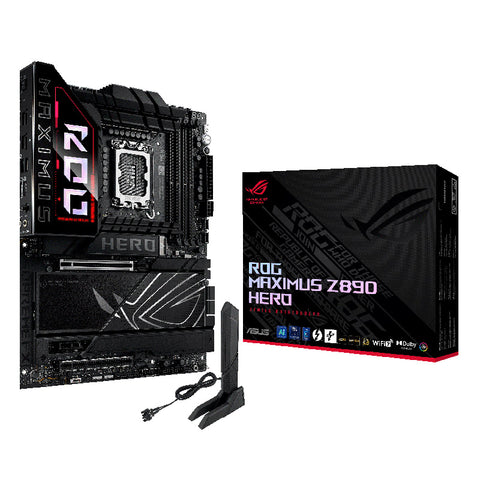

The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

• Support Intel® Core™ Ultra Processors (Series 2), LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
• Technology 3.0
• Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset: Intel® Z890 Chipset

• Memory: 4 x DIMM slots, max. 192GB, DDR5
• Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
• Dual-channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• NitroPath DRAM Technology
• DIMM FIT
• ASUS Enhanced Memory Profile III (AEMP III)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics: 1 x HDMI™ port
• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates
• Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
• In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
• In DP alt mode, only one USB Type-C® port supports up to UHBR20 at a time.
• VGA resolution support depends on the processors' or graphics cards' resolution.
• While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

• USB: Rear USB (Total 11 ports)
• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
• 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 10 ports)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A
• USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
