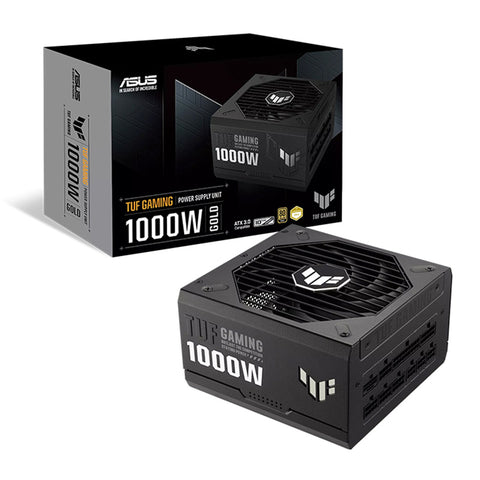

Model	TUF Gaming 1000W Gold
Intel Form Factor	ATX12V
PFC Type	Active PFC
ATX 3.0	Yes
Dimensions	150 x 150 x 86 mm
Efficiency	80 Plus Gold
Protection Features	OPP / OVP / UVP / SCP / OCP / OTP
Hazardous Materials	ROHS
AC Input Range	100 - 240Vac
DC Output Voltage	+3.3V +5V +12V -12V +5Vsb
Maximum Load	25A 25A 83.3A 0.8A 3A
Combined Load	130W 130W 1000W 9.6W 15W
Total Output	1000W
Cable Connectors	MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI‑E 16‑pin x 1 (both PSU & component side) PCI‑E 8‑pin x 4 SATA x 5 PERIPHERAL x 4
Package Contents	Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI‑E Gen 5 16‑pin Cable x 1 (675mm) PCI‑E (16‑pin to 8‑pin‑8‑pin) Cable x 1 (675mm) PCI‑E 1‑to‑1 Cable x 2 (675mm) SATA 1‑to‑2 Cable x 1 (400 + 120mm) SATA 1‑to‑3 Cable x 1 (400 + 120 + 120mm) Peripheral 1‑to‑4 Cable x 1 (400 + 150 + 150 + 150mm) TUF Gaming Cable Tie x 3 User Manual x 1
Weight	2.48kg (single PSU)
0dB Technology	Supported. The fan shuts off entirely when the PSU is under certain load.
