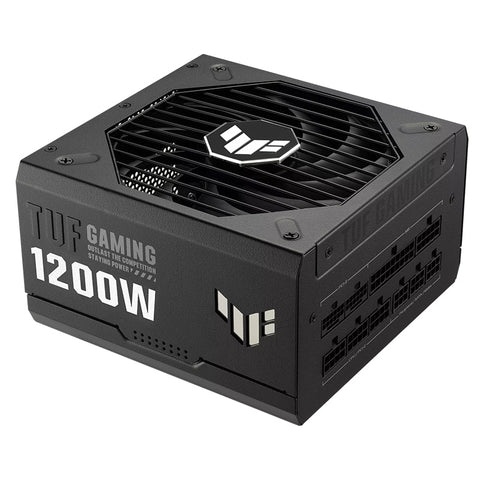

The ASUS TUF Gaming 1200W Gold Power Supply delivers up to 1188W across its single +12V rail and includes dual native 16-pin PCIe 5.0 connectors to support high-draw graphics cards. Compliant with strict ATX 3.0 power standards, this 80 Plus Gold certified unit is engineered with active PFC to handle high transient power spikes from modern hardware configurations.
Native ATX 3.0 power delivery with dual 16-pin PCIe 5.0 connectors
Modern graphics architectures demand substantial power headroom during rapid load shifts. The TUF Gaming 1200W Gold features two dedicated 16-pin PCIe Gen 5 connectors with generous 675 mm cable lengths, eliminating the need for multi-adapter cable splices. Delivering a continuous 99A output on the +12V rail, the power supply ensures clean voltage delivery to prevent unexpected system shutdowns during intense gaming sessions or GPU-heavy rendering tasks.
Conformal PCB coating and 105°C military-grade capacitors
To ensure long-term stability in diverse operating environments, the internal printed circuit board is shielded with a protective conformal PCB coating. This barrier defends sensitive surface components against ambient moisture, airborne dust, and particulate contamination. The electrical layout utilizes military-grade capacitors rated for continuous operation at up to 105°C, yielding a capacitor lifespan of up to 170,000 hours and an overall MTBF exceeding 120,000 hours at 40°C ambient temperatures.
135mm dual ball bearing fan with 0dB silent operation
Internal cooling is driven by a 135mm fan fitted with a dual ball bearing mechanism, doubling the operational longevity of traditional sleeve-bearing fans. Built-in 0dB technology monitors overall system draw, halting fan rotation completely during light workloads to eliminate operational noise when power consumption remains low.
Fully modular cabling and compact 150mm ATX design
Measuring 150 x 150 x 86 mm, the unit maintains a standard 150mm ATX length to preserve cable routing space inside standard desktop enclosures. The fully modular design lets you attach only the wiring required for your specific component setup, improving airflow within the chassis.
Included modular connectors and cable lengths:
- 1x 24-pin Motherboard: 610 mm
- 2x 4+4-pin EPS / CPU: 650 mm
- 2x 16-pin PCIe Gen 5: 675 mm
- 3x 8-pin PCIe: High-draw expansion card support
- 5x SATA: Storage drives and internal hubs
- 4x 4-pin Peripheral: System accessories and fans
Electrical safety is maintained through dynamic OPP, OVP, UVP, SCP, OCP, and OTP protection suites. The unit is backed by a 10-year manufacturer warranty.
