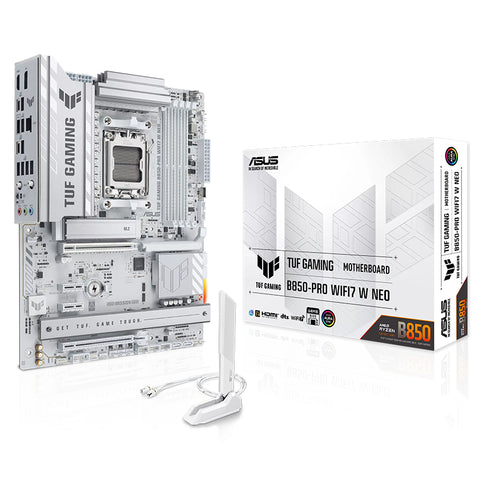

14+2+1 power stages for steady Ryzen multi-threaded performance
To supply clean, sustained voltage under intensive workloads, this motherboard employs a 14+2+1 power stage VRM design rated for 80A DrMOS per stage. Power is delivered through dual 8-pin +12V CPU power connectors alongside a standard 24-pin main motherboard connector, ensuring adequate headroom when running high-core-count Ryzen processors under load. This robust power topology maintains system stability during heavy rendering tasks, video encoding, or extended gaming sessions.
PCIe 5.0 bandwidth for modern graphics cards and rapid M.2 NVMe storage
The main expansion setup includes one PCIe 5.0 x16 slot, providing maximum bus bandwidth for current and upcoming high-performance graphics cards. An additional PCIe 4.0 x16 slot operating in x4 mode offers flexibility for secondary expansion cards such as capture cards or dedicated storage controllers.
Storage demands are handled across three onboard M.2 slots and four SATA 6Gb/s ports:
- 1 x PCIe 5.0 x4 M.2 slot: Delivers high transfer speeds when paired with Gen 5 NVMe solid-state drives.
- 2 x PCIe 4.0 x4 M.2 slots: Provide fast storage channels for primary OS drives, game libraries, or scratch disks.
- 4 x SATA 6Gb/s ports: Support traditional 2.5-inch SSDs and high-capacity 3.5-inch hard drives for bulk storage.
Four DDR5 slots supporting up to 256GB at 8400+ MT/s
System memory expansion is provided through four DDR5 DIMM slots capable of supporting a maximum total capacity of 256 GB. Overclocked memory speeds can reach 8400+ MT/s (OC), reducing latency and enabling fast data transfer rates for memory-intensive applications such as 3D animation, video production, and high-frame-rate gaming. Dual-channel DDR5 configuration options allow custom builders to scale memory capacity from entry-level setups up to full high-capacity workstations.
Wi-Fi 7 wireless, 2.5Gb LAN, and front-panel USB 20Gbps header
Network connectivity leverages both wired and wireless technologies to suit demanding network environments. Onboard Wi-Fi 7 (802.11be) offers high-bandwidth wireless networking with lower latency than previous Wi-Fi standards, complemented by Bluetooth 5.4 for peripheral pairing. Wired networking is driven by a Realtek 2.5Gb Ethernet controller for fast local network transfers and low-latency online gaming.
For chassis connectivity, the board provides a front-panel USB 20Gbps Type-C header capable of high-speed data transfer directly through compatible PC case front ports. Internal header options include:
| Front USB 20Gbps | 1 x Type-C header |
| Front USB 5Gbps | 1 x header (supports 2 ports) |
| Front USB 2.0 | 3 x headers (supports 6 ports) |
Realtek 7.1 HD audio and versatile rear USB port selection
Audio processing is handled by an onboard Realtek ALC1220P codec delivering 7.1 surround sound high-definition audio for spatial awareness in games and clear playback across analog speakers and headsets.
The rear I/O panel houses a comprehensive selection of connectivity for external peripherals, external storage drives, and display outputs:
- 2 x USB 10Gbps Type-C ports for high-speed external SSDs and modern peripherals.
- 2 x USB 10Gbps Type-A ports for high-speed accessories and flash drives.
- 4 x USB 5Gbps Type-A ports for keyboards, mice, and audio interfaces.
- 2 x USB 2.0 Type-A ports for dedicated peripheral connections.
- 1 x DisplayPort 1.4 & 1 x HDMI 2.1 for direct display connection when using processors with integrated graphics.
