| Model | TUF GAMING X870-PLUS WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 |
| Memory | 4x DIMM, max 256GB DDR5, up to 8000+ MT/s (OC), ECC/Non‑ECC, dual‑channel, supports EXPO™ and AEMP |
| Graphics | 1x HDMI 2.1 (4K@60Hz), 2x USB4® (40Gbps) Type‑C ports with DP 1.4a (max 4K@60Hz) |
| Expansion Slots | PCIe 5.0 x16 (x16) for Ryzen 9000/7000, PCIe 4.0 x16 (x8/x4) for Ryzen 8000, PCIe 4.0 x16 (x4) via chipset |
| Storage | 4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4), 2x SATA 6Gb/s, supports RAID 0/1/5/10 (RAID 5 CPU‑dependent) |
| Ethernet | Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi‑Fi 7 (2x2, up to 2.9 Gbps, 2.4/5/6 GHz), Bluetooth v5.4* |
| USB | Rear: 2x USB4® (40Gbps) Type‑C, 3x USB 10Gbps Type‑A, 4x USB 5Gbps Type‑A, 1x USB 2.0 Type‑A; Front: 1x USB 20Gbps Type‑C (PD up to 30 W), 1x USB 5Gbps header (2 ports), 2x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 Surround, 120 dB SNR playback, 113 dB SNR recording, supports up to 32‑Bit/192 kHz |
| Back Panel I/O | 2x USB4® (40Gbps) Type‑C, 3x USB 10Gbps Type‑A, 4x USB 5Gbps Type‑A, 1x USB 2.0 Type‑A, 1x HDMI, 1x 2.5Gb Ethernet, 5 audio jacks, BIOS FlashBack™ button |
| Internal Connectors | 4‑pin CPU fan, CPU‑OPT fan, AIO pump, 4× chassis fans, W_PUMP+, 24‑pin ATX, 2× 8‑pin CPU power, 4× M.2, 2× SATA, USB 20Gbps Type‑C (PD fast‑charge), USB 5Gbps header (2 ports), 2× USB 2.0 headers (4 ports), 3× addressable Gen2 RGB headers, Clear CMOS, COM, front‑panel audio, etc. |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD guards, LANGuard, over‑voltage, SafeSlot), Q‑Design (M.2 Q‑Latch, PCIe Q‑Release, Q‑Antenna, Q‑LED), Thermal solutions (VRM & M.2 heatsinks), EZ DIY (BIOS FlashBack™, pre‑mounted I/O shield), Aura Sync |
| Software | Armoury Crate (Aura Sync, Fan Xpert 4 with AI Cooling II), ASUS AI Suite, ASUS EZ Flash, ASUS GPU Tweak, ASUS Wireless Console, etc. |
Description
Product specifications
- Chipset: AMD X870
- CPU socket: AMD Socket AM5
- Contains button battery: Yes
- Manufacturer's warranty: 36 months
- Motherboard form factor: ATX
ASUS

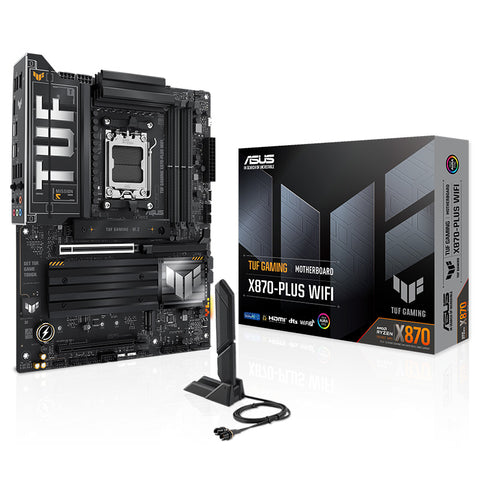

Asus TUF Gaming X870-PLUS WIFI AM5 ATX Motherboard (TUF GAMING X870-PLUS WIFI)
Price:
$556
Key features
- Motherboard CPU Socket : AMD Socket AM5
- Motherboard Form Factor : ATX
- Motherboard Chipset : AMD X870
Getting your item
Delivery available
