| Model | TUF GAMING X870E-PLUS WIFI7 |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 × DIMM, max 256 GB DDR5, up to 8000+ MT/s (OC), supports EXPO™ and AEMP |
| Graphics Output | 1 × HDMI 2.1 (4K@60 Hz), 2 × USB4® (40 Gbps) Type‑C ports (DisplayPort 1.4a, 4K@60 Hz) |
| Expansion Slots |
• PCIe 5.0 ×16 (CPU dependent) • PCIe 4.0 ×16 (CPU dependent) • PCIe 3.0 ×1 |
| Storage |
• 4 × M.2 slots (PCIe 5.0 ×4 on slots 1‑2 for Ryzen 9000/7000, PCIe 4.0 ×4 on slots 3‑4) • 4 × SATA 6 Gb/s ports |
| Ethernet | Realtek 2.5 Gb Ethernet with TUF LANGuard |
| Wireless & Bluetooth | Wi‑Fi 7 (2.4/5/6 GHz, 160 MHz, up to 2.9 Gbps) & Bluetooth v5.4 |
| USB Ports |
Rear: 2 × USB4® (40 Gbps, Type‑C), 3 × USB 10 Gbps (Type‑A), 4 × USB 5 Gbps (Type‑A), 4 × USB 2.0 (Type‑A) Front: 1 × USB 20 Gbps Type‑C (PD up to 30 W), 1 × USB 5 Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 Channel, 120 dB SNR (stereo), 113 dB SNR (line‑in), DTS Audio Processing |
| Back Panel I/O | 2 × USB4®, 3 × USB 10 Gbps, 4 × USB 5 Gbps, 4 × USB 2.0, 1 × HDMI 2.1, 1 × Wi‑Fi module, 1 × 2.5 Gb Ethernet, 3 × Audio jacks, BIOS FlashBack™ button |
| Internal Connectors |
• 1 × 24‑pin ATX, 2 × 8‑pin CPU power • 1 × 4‑pin CPU fan, 1 × 4‑pin CPU OPT fan, 1 × 4‑pin AIO pump, 4 × 4‑pin chassis fans • 4 × M.2 slots, 4 × SATA ports • 3 × Addressable Gen 2 RGB headers, 1 × Clear CMOS, 1 × Chassis intrusion, front panel audio, front system panel, thermal sensor headers |
| Special Features | ASUS TUF Protection (DIGI+ VRM, ESD Guard, TUF LANGuard, Over‑voltage protection, SafeSlot), ASUS Q‑Design (Q‑Latch, Q‑Release Slim, Q‑Antenna, Q‑LED, Q‑Dashboard, Q‑DIMM), ASUS Thermal Solution (VRM & M.2 heatsinks), EZ DIY (BIOS FlashBack™, ProCool, pre‑mounted I/O shield), Aura Sync, Front USB 20 Gbps PD Fast‑Charge |
| Software | Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4), AI Advisor, DriverHub, GlideX, USB Wattage Watcher, TurboV Core, TUF GAMING CPU‑Z, DTS Audio, Norton 360 (60 days), WinRAR (40 days), UEFI BIOS utilities (CrashFree BIOS 3, EZ Flash 3, MyHotkey) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | Wake‑on‑LAN (WOL) by PME, PXE |
| Accessories | 2 × SATA cables, ASUS Wi‑Fi Q‑Antenna, M.2 rubber packages, M.2 screw set, TUF GAMING sticker, Quick‑start guide |
| Operating System | Windows 11 |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
Description
Product specifications
- Chipset: AMD X870E
- CPU socket: AMD Socket AM5
- Contains button battery: Yes
- Manufacturer's warranty: 36 months
- Motherboard form factor: ATX
ASUS

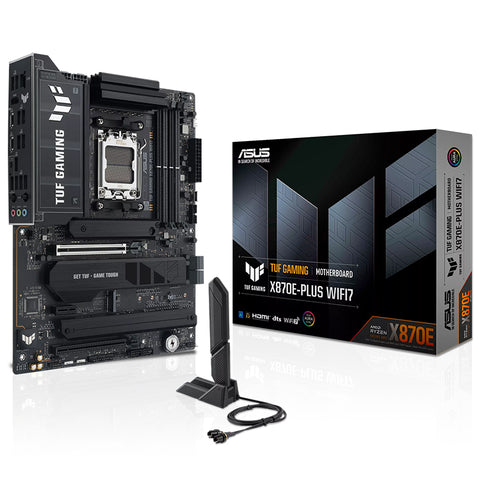

Asus TUF Gaming X870E-PLUS WiFi7 AM5 ATX Motherboard
Price:
$490
Key features
- Motherboard CPU Socket : AMD Socket AM5
- Motherboard Form Factor : ATX
- Motherboard Chipset : AMD X870E
