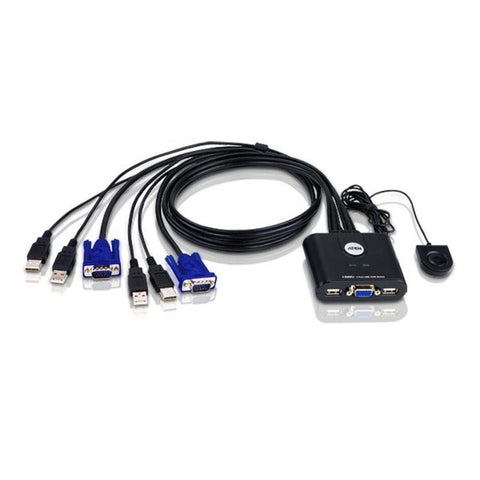

Aten 2 Port USB VGA Cable KVM Switch (CS22U)
Superior video quality - up to 2048 x 1536; DDC2B
Computer Selection via a Remote Port Selector
Multiplatform support - Windows, Mac, Linux and Sun
-
Bus-powered design
Specifications
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |
| Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female |
| KVM Ports | 2 x HDB-15 Male (Blue) 4 x USB Type A Male (Black) |
| LEDs | |
| Selected | 2 |
| Cable Length | |
| Computer | 2 x 0.9 m |
| Remote Port Selector | 1.8 m |
| Video | 2048 x 1536, DDC2B |
| Environmental | |
| Operating Temperature | 0-50 °C |
| Storage Temperature | -20-60 °C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.30 kg ( 0.66 lb ) |
| Dimensions (L x W x H) | 8.24 x 7.01 x 2.46 cm (3.24 x 2.76 x 0.97 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
1x User Instructions
