Aten 2 Port USB3.0 KVMP 4K Display Port Switch

Description

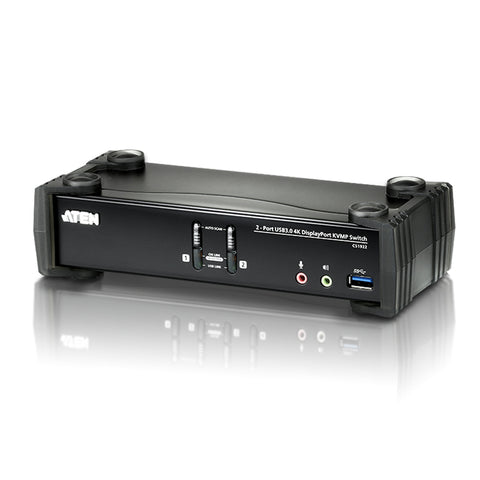

Aten 2 Port USB3.0 KVMP 4K Display Port Switch

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP „¢ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.


As a KVM switch, the CS1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1922 provides three convenient switching methods €“ using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.


The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer €“ such as a print server, modem splitter, etc.


With its rich feature set, the CS1922 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1922 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.


Specifications

  • Computer Connections: 2

  • Port Selection: Hotkey, Pushbutton, Mouse

  • Console Ports: 2 x USB Type A Female (Black)

    1 x DisplayPort Female (Black)

    2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

    2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

  • KVM (Computer) Ports: 2 x USB3.1 Gen1 Type B Female (Blue)

    2 x DisplayPort Female (Black)

    2 x 3.5mm Audio Jack Female (Green)

    2 x 3.5mm Audio Jack Female (Pink)

  • Power: 1 x DC Jack

  • USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)

  • Switches: 2 x Pushbutton

  • On Line /Selected LEDs: 2 (Orange)

  • USB Link LEDs: 2 (Green)

  • Keyboard / Mouse: USB

  • Video: 4096 x 2160 @ 60Hz

  • Scan Interval: 1-99 Seconds (Default: 5 sec.)

  • Power Consumption: DC5V:1.15W:55BTU

  • Operating Temperature: 0-50 °C

  • Storage Temperature: -20-60 °C

  • Humidity: 0-80% RH, Non-condensing

  • Housing: Metal, Plastic

  • Weight: 0.73 kg ( 1.61 lb )

  • Dimensions (L x W x H): 21.00 x 8.80 x 5.55


Product specifications

  • Contains button battery: No
  • Accessory type: USB hubs
  • Manufacturer's warranty: 12 months

ATEN

Aten 2 Port USB3.0 KVMP 4K Display Port Switch

Model: CS1922-AT-U SKU: 10081141
