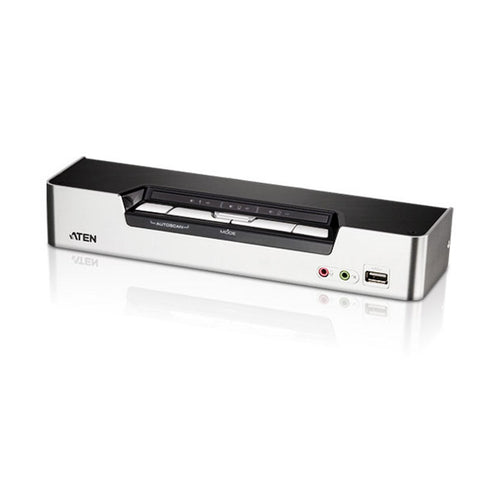

Aten 4 Port USB 2.0 HDMI KVMP Switch (CS1794C-AT-U)
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
PC selection via pushbutton and hotkeys
Video DynaSync ¢ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Multiplatform support - Windows, Linux,and Mac
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton |
| Connectors | |
| Console Ports | 2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| KVM Ports | 4 x USB Type B Female 4 x HDMI Female (Black) 4 x 3.5 mm Audio Jack Female (Green) 4 x 3.5 mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x 3.5 mm Audio Jack Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel; 1 x rear panel) |
| Switches | |
| Selected | 5 x Pushbutton |
| LEDs | |
| Audio | 5 (Green) |
| KVM | 5 (Orange) |
| USB | 5 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz |
| Scan Interval | 1-99 seconds (default: 5 sec.) |
| Power Consumption | DC5.3V:3.62W:43BTU |
| Environmental | |
| Operating Temperature | 0-50 °C |
| Storage Temperature | -20-60 °C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal, Plastic |
| Weight | 0.53 kg ( 1.17 lb ) |
| Dimensions (L x W x H) | 26.23 x 7.68 x 4.40 cm (10.33 x 3.02 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
1x CS1794 USB 2.0 HDMI KVMP ¢ Switch
4x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Adapter
1x User Instructions
