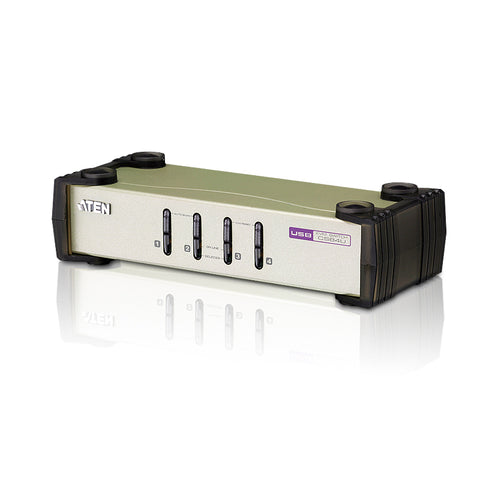

Aten 4 Port USB & PS/2 VGA KVM Switch (CS84U)
Superior video quality - 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys, and mouse
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Video DynaSync ¢ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, USB Mouse |
| Connectors | |
| Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) |
| KVM Ports | 4 x SPHD-18 Female (Yellow) |
| Power | 1 x DC Jack |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| Online | 4 (Orange) |
| Selected | 4 (Green) |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
| Scan Interval | 3, 5, 10, 20 seconds (default: 5 secs.) |
| Power Consumption | DC5V:0.45W:11BTU |
| Environmental | |
| Operating Temperature | 0 - 50 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.77 kg ( 1.7 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
1x CS84U PS/2-USB KVM Switch
2x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, PS/2; 1.8m/6ft)
1x User Instructions
