SPECIFICATIONS:

GENERAL DATA

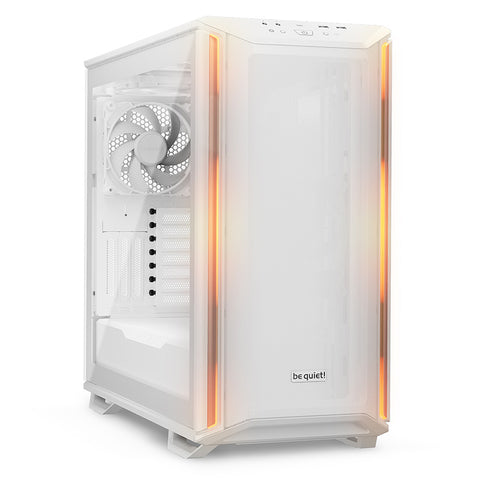

Model	Dark Base 701 White
Color option	White
Motherboard compatibility	E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm)	565 x 249 x 495
Case size incl. stands (L x W x H), (mm)	565 x 249 x 523
Volume (l)	69.64
PSU form factor	ATX PS/2
Net weight (kg)	12.8
Expansion slots	7 + 3
PRE-INSTALLED FANS
Fan at top	1x Silent Wings 4 140mm PWM high-speed White
Fan at front	1x Silent Wings 4 140mm PWM high-speed White
Fan at rear	1x Silent Wings 4 140mm PWM high-speed White
Dimensions (L x W x H), (mm)	Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm)	1900
Airflow at 100% PWM / 12V (CFM / m3/h)	78.4 / 133.2
Air Pressure at 100% PWM / 12V (mm H2O)	2.36
Noise level at 100% PWM / 12V (dB(A))	29.3
Voltage range (V DC)	5 - 13.2
Input power (W)	4.8
Input current (A)	0.4
Connector	4-pin PWM
Lifespan (h / 25 °C)	300,000
Fan controller
MAXIMUM FAN INSTALLATION
Maximum fans	8
Top (mm)	3x 140 / 3x 120
Front (mm)	3x 140 / 3x 120
Rear (mm)	1x 140 / 1x 120
Bottom (mm)	1x 140 / 1x 120
OPTIONAL RADIATOR INSTALLATION
Top (mm)	120 / 140 / 240 / 280 / 360
Front (mm)	120 / 140 / 240 / 280 / 360
Rear (mm)	120
PSU COMPATIBILITY
Maximum dimensions excl. bottom fan (mm)	250
Maximum dimensions incl. bottom fan (mm)	250
GRAPHICS CARD
HDD cage (in height of graphics card) installed (mm)	415
HDD cage (in height of graphics card) removed (mm)	415
Maximum PCIe slots with vertical graphics card (pcs.)	3
DRIVE BAY CAPACITY
3.5 slots (scope of delivery)	2
3.5 slots (max.)	3
2.5 slots (scope of delivery)	3
2.5 slots (max.)	5
COOLING
Max.construction height of CPU cooler unit (mm)	185
Airflow channel	Front / Top / Rear / Bottom
LIGHTING
LED illumination
LEDs (pcs.)	48
LED type	ARGB - 5V
LEDs synchronizable with controller/motherboard
I/O PANEL
USB 3.2 Gen. 2 Type C	1
USB 3.2 Type A	2
HD Audio I/O	Mic + Audio
INSULATION AND DAMPING
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
SCOPE OF DELIVERY
Screw set (Drives/Motherboard)
Additional standoffs (pcs.)	1
LED strips (pcs.)	0
Cable ties (pcs.)	9
Mesh Front Panel
REMOVEABLE DUST FILTERS
Front	1
Bottom	1
MATERIAL
Top cover	Steel
Front panel	Steel
Side panel	Glass
Side panel window	Steel
Stands	ABS
