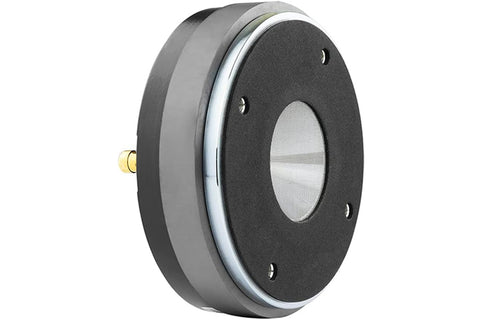

Black Diamond DIA-D2 2" Compression Driver 2" Titanium Coil, 1 Tweeter

Description

Black Diamond 2" Titanium Voice Coil 640 Watts 8-ohm DIA-D2

Key Features:

  • AES Power Handling: 160 Watts
  • Program Power Handling: 320 Watts
  • Peak Power Handling: 640 Watts
  • Nominal Impedance:8 Ohm
  • Sensitivity (1w/1m): 100dB
  • Frequency Response: 630Hz-20KHz
  • Recommended Hi Pass Crossover: 1KHz
  • Throat Diameter:2"
  • Installation Type: Bolt-on

Specifications:

  • MOTOR
    • Voice Coil Diameter: 2"
    • Voice Coil Former Material: Kapton
    • Winding Material: CCAW
    • Diaphragm Material: Titanium
    • Magnet Material: Ferrite
    • Magnet Weight: 34Oz
  • MEASUREMENTS
    • Overall Diameter: 5.27" / 134mm
    • Overall Depth: 2.36" / 60mm
    • Bolt Pattern/Type: 4" / 102mm - M6

Product specifications

  • Contains button battery: No
  • Manufacturer's warranty: 12 Months

BLACK DIAMOND

Black Diamond DIA-D2 2" Compression Driver 2" Titanium Coil, 1 Tweeter

Model: DIA-D2 SKU: 10003818

AUDIO

Price:

$88

Key features

  • High 640W peak power handling, 8-ohm impedance for clear sound
  • Wide 630Hz-20kHz frequency range with 100dB sensitivity
  • Durable 2" titanium voice coil and 34oz ferrite magnet
