Black Diamond DIA-P1800X4D 4-Channel Class-D 3600 Watt Amplifier

Description

INCREDIBLE PERFORMANCE - With a maximum output of 3600 watts, this amplifier combines powerful sound delivery with high efficiency. It leverages advanced technology to use less energy while providing all the power you need. Versatile in its application, this amp can drive a range of speakers tailored to your specific setup. You'll never have to fret over choosing the right amplifier for your audio needs again.

Key Features:

  • Amplifier Class: Digital (D)
  • Amplifier Type: Stereo Full Range
  • Number Of Channels: 4
  • Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge

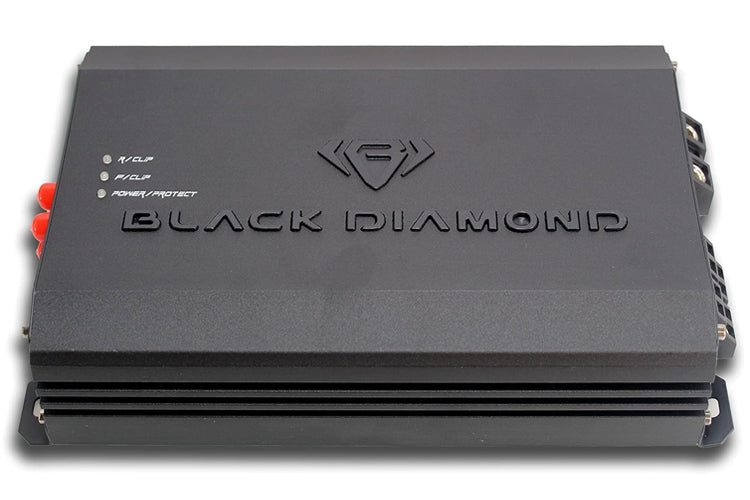

  • Led Indicator: Power / Protect / Clipping
  • Recommended Fuse Size: 120A

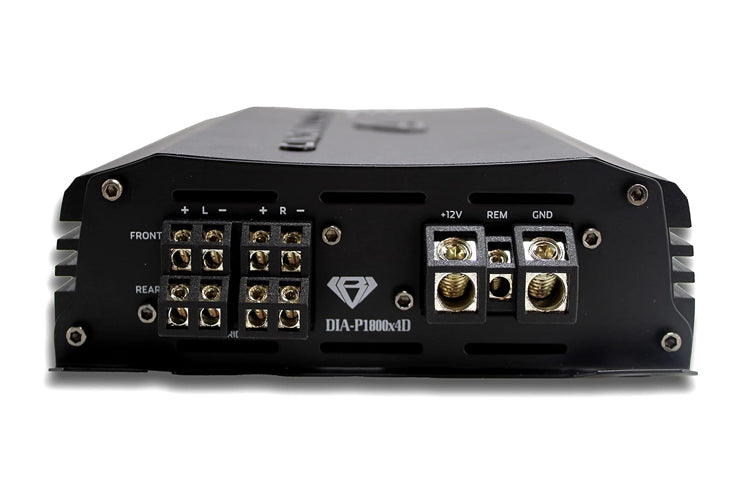

  • Power Input Terminal Size: 4Ga
  • Thermal Protection: Yes
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (9/)16V
  • Clipping Protection: Yes
  • Body Color | Finish: Black | Satin
  • SPECIFICATIONS:
    • - Total Watts (Peak): 3600 Watts
    • - RMS Power @ 4 OHM: 4 x 200 Watts
    • - RMS Power @ 2 OHM: 4 x 320 Watts
    • - RMS Power @ 4 OHM Bridge: 2 x 600 Watts
  • AUDIO SPECIFICATIONS:
  • Frequency Response: 20Hz ~ 20KHz
  • Signal To Noise Ratio: >90dB
  • Efficiency @ 4 OHM: 85%
  • Total Harmonic Distortion (THD): 1%
  • Low Level Input Range: 0.2V ~ 6V

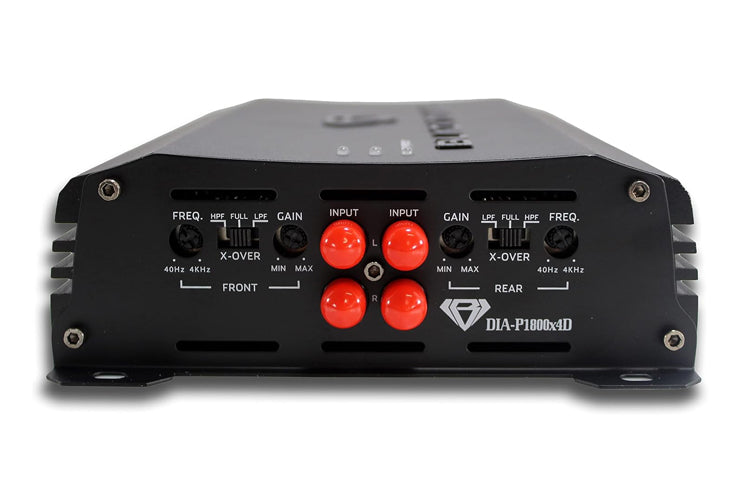

  • Selectable X-over: FULL/LPF/HPF
  • X-over Filter Range: 40Hz ~ 4KHz

Product specifications

  • Contains button battery: No
  • Accessory type: Other

BLACK DIAMOND

Black Diamond DIA-P1800X4D 4-Channel Class-D 3600 Watt Amplifier

Model: DIA-P1800X4D SKU: 10008559

AUDIO

Price:

$329

Key features

  • 3600W Peak Output with high efficiency and low energy consumption
  • 4 Channels, Digital (D) Class Amplifier, with various impedance options
  • Multiple Protection Features: thermal, overload, short circuit
