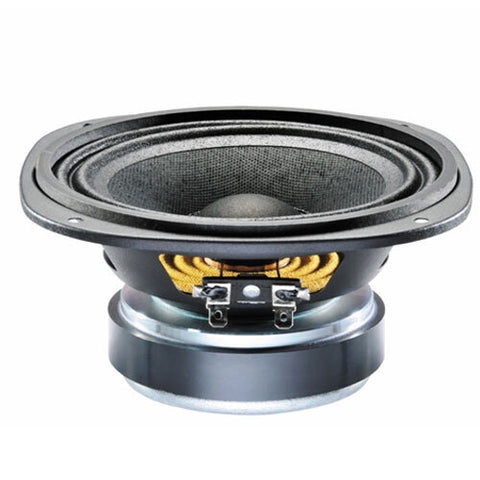

Celestion T5306 5" Speaker 30W Steel 8ohm/91dB Ferrite Magnet Drive Unit Black

Description

Multi-purpose 5" drive unit delivering clear bass and mid frequencies.

Provides 91dB sensitivity and 30Wrms (AES standard) power handling.

1" high temperature copper voice coil wound on polyimide former for increased reliability.

Ideal for use in multiple speaker systems: as LF driver in 2-way systems, as MF driver in 3-way systems.

Features:

  • 30W

  • Nominal impedance 8O

  • Sensitivity 91dB

  • Frequency range 130-8000Hz

  • Voice coil diameter 25mm/1in

  • Chassis type Pressed steel

  • Magnet type Ferrite

  • Magnet weight 0.37kg/13oz

  • Coil material Round copper

  • Former material Polyimide

  • Cone material Kevlar loaded paper

  • Surround material Cloth-sealed

  • Suspension Single

  • Xmax 1.1mm/0.04in

  • Gap depth 5mm/0.20in

  • Voice coil winding width 7.3mm/0.29in

Includes:

  • 1x Celestion 5" 30W Speaker 8OHM

Product specifications

  • Speaker Type: Bookshelf Speakers
  • Product Depth (mm): 140.0
  • Product Width (mm): 140.0
  • Product Height (mm): 110.0
  • Product Weight (kg): 1.0
  • Contains button battery: No
  • Manufacturer's warranty: 1 Year

CELESTION

Celestion T5306 5" Speaker 30W Steel 8ohm/91dB Ferrite Magnet Drive Unit Black

Model: 28/TF0510 SKU: 10036485

AUDIO

Price:

$69.56

Key features

  • Powerful 5" speaker for clear bass and mid range
  • High sensitivity speaker with 91dB and 30W power
  • Versatile speaker ideal for multiple system uses
