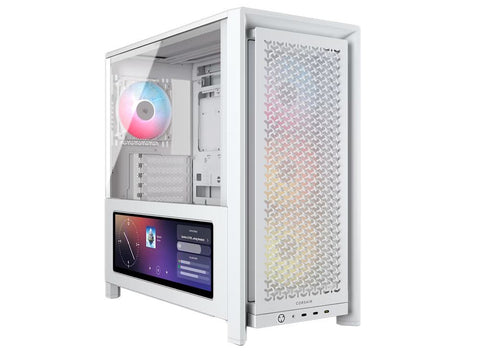

The Corsair FRAME 4000D LCD RS ARGB Mid-Tower Case integrates a 14.5-inch XENEON EDGE 2560x720 60Hz touchscreen directly into an all-white steel and tempered glass frame. Engineered for high-performance builds, this chassis provides real-time system monitoring, custom interface controls, and massive cooling flexibility within a standard mid-tower footprint.
Command your system with an integrated 14.5-inch 2560x720 touchscreen
Built directly into the front structure, the XENEON EDGE 14.5-inch LCD touchscreen delivers an ultra-wide 2560x720 resolution operating at a smooth 60Hz refresh rate. Rather than mounting extra internal monitors or external display arms, this integrated panel connects to your system to present live hardware telemetry, temperatures, fan speeds, chat feeds, or custom application launcher buttons right where you can see and touch them.
Precision fan positioning with the CORSAIR InfiniRail mounting system
Cooling configuration is handled by the CORSAIR InfiniRail fan mounting system, which uses continuous sliding rails instead of fixed screw holes. This allows you to shift airflow directly toward heat-sensitive components like your graphics card or VRMs. The case arrives pre-configured with four RS120 PWM ARGB fans to establish immediate positive pressure out of the box.
- Front Fan Positions: 3x 120mm, 2x 140mm, or 2x 200mm
- Top Fan Positions: 3x 120mm or 2x 140mm
- Side Fan Positions: 3x 120mm or 2x 140mm
- PSU Shroud & Bottom Positions: 2x 120mm (shroud), 1x 120mm (bottom)
- Rear Fan Positions: 1x 120mm or 1x 140mm
Massive internal headroom for flagship GPUs and multi-radiator liquid cooling
Despite its mid-tower dimensions of 490mm long, 239mm wide, and 486mm tall, the internal layout accepts large-format components without clearance bottlenecks. It accommodates motherboards ranging from Mini-ITX and Micro-ATX up to full E-ATX boards measuring 305mm x 277mm. Flagship graphics cards up to 430mm in length fit easily, supported by either 7 horizontal expansion slots or 3 vertical slots for upright GPU display.
For liquid cooling configurations, the chassis simultaneously accommodates 360mm, 280mm, or 240mm radiators across the front, top, and side locations, as well as a 140mm or 120mm radiator at the rear panel. Large CPU air coolers up to 170mm tall and power supplies up to 220mm in length fit comfortably within the main cavity and lower shroud.
High-speed front panel connectivity featuring USB 3.2 Gen 2x2 Type-C
The top front I/O panel gives immediate access to high-bandwidth peripheral connections, avoiding the need to reach behind your desk.
| 1x USB 3.2 Gen 2x2 Type-C | Delivers up to 20Gbps data throughput for modern external SSDs and audio interfaces |
| 2x USB 3.2 Gen 1 Type-C | Provides reliable high-speed connections for daily peripherals and gear |
| 1x 3.5mm Combo Jack | Handles simultaneous headphone output and microphone input via a single port |
Tool-free dust protection and structured internal storage
To maintain peak thermal performance and clean interior aesthetics over time, the chassis features removable dust filters placed across the front, bottom, and side intake paths. Storage drive mounts include two internal 2.5-inch drive bays alongside one internal 3.5-inch drive bay, keeping bulk storage tucked out of sight behind the motherboard tray. Weighing 9.95 kg, this solid white steel and glass chassis is backed by a 2-year warranty from Corsair.
