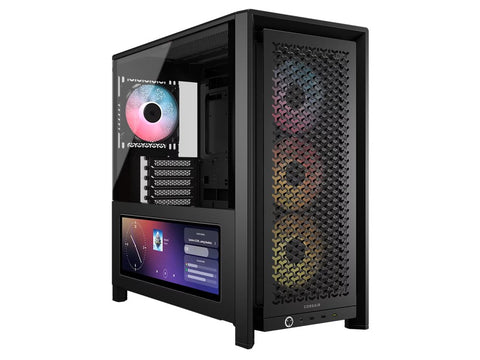

The Corsair FRAME 4000D LCD RS ARGB Mid-Tower PC Case features an integrated 14.5-inch Xeneon Edge LCD touchscreen display running at a 2560x720 resolution. Engineered from steel, tempered glass, and plastic in a black finish, this mid-tower chassis blends advanced hardware monitoring with versatile airflow and liquid cooling configurations.
Integrated 14.5-Inch Touchscreen for System Monitoring and Control
Positioned directly on the frame, the 14.5-inch Xeneon Edge touchscreen provides an active canvas with a crisp 2560x720 pixel resolution. This built-in screen lets you track live hardware metrics, system temperatures, and fan speeds without cluttering your primary monitors. Touch functionality allows quick setting adjustments and visual layout changes on the fly, transforming your chassis into an interactive control panel for your entire setup.
Triple 360mm Radiator Support and Four Pre-Installed ARGB Fans
Cooling performance is backed out of the box with four included RS120 PWM ARGB fans, delivering controlled airflow and customisable lighting. The internal structure is built for demanding thermal setups, accommodating multi-radiator liquid cooling loops across multiple locations.
- Front Radiator Mounting: Fits 360mm, 280mm, or 240mm radiators.
- Top Radiator Mounting: Fits 360mm, 280mm, or 240mm radiators.
- Side Radiator Mounting: Fits 360mm, 280mm, or 240mm radiators.
- Rear Radiator Mounting: Fits 140mm or 120mm radiators.
To maintain clean airflow and prevent dust accumulation over extended use, removable dust filters are located on the front, bottom, and side panels.
Extensive Hardware Headroom and Reverse-Connector Motherboard Support
Despite its standard mid-tower footprint measuring 486 mm high, 490 mm long, and 239 mm wide, the chassis accommodates large modern hardware. Motherboard support spans Mini-ITX, Micro-ATX, ATX, and E-ATX form factors up to 305mm x 277mm. The mainboard tray fully supports reverse-connector motherboards, allowing power and data cables to route directly behind the tray for a clean, cable-free main chamber.
| Maximum GPU Length | 430 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 220 mm |
| Expansion Layout | 7 Horizontal or 3 Vertical slots |
| Chassis Weight | 12.36 kg |
The 7 horizontal expansion slots can be reconfigured into 3 vertical slots, giving you flexibility when installing heavy graphics cards for front-facing display through the tempered glass side panel.
High-Speed Front USB Type-C Ports and Flexible Storage Mounts
The front I/O panel is equipped for fast external storage and high-speed peripheral connections. It features one USB 3.2 Gen 2x2 Type-C port capable of high bandwidth transfers, alongside two USB 3.2 Gen 1 Type-C ports and a 3.5mm headphone/microphone audio combo jack.
Internal drive storage includes dedicated bays for clean installation out of sight:
- 3.5-inch Drive Bays: 1 internal bay for high-capacity hard drives.
- 2.5-inch Drive Bays: 2 internal bays for fast SATA solid-state drives.
