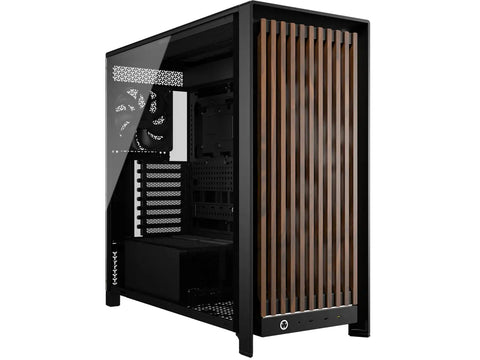

The Corsair FRAME 5000D WOOD RS Mid Tower E-ATX Case pairs solid FSC-certified walnut wood front accents with support for up to three 420mm liquid cooling radiators.
Furniture-grade solid walnut accents for refined desktop spaces
Constructed with a heavy-duty steel frame, tempered glass side panel, and solid FSC-certified walnut wood front paneling, the Corsair FRAME 5000D WOOD RS delivers a distinct natural aesthetic without compromising structural rigidity or airflow. Measuring 542 mm high, 556 mm long, and 250 mm wide, this mid-tower chassis provides the internal volume required for high-end gaming rigs and workstation configurations while fitting cleanly onto standard office desks.
Triple 420mm radiator capacity with pre-installed 200mm fans
Thermal management is centred around extensive fan and radiator mounting options. Out of the box, the chassis comes equipped with two high-volume 200mm RS200 fans mounted at the front and one 140mm RS140 fan at the rear to establish immediate positive airflow. For custom liquid loops or all-in-one liquid coolers, the frame provides mount locations for large radiators up to 420mm across three distinct zones:
- Front Mount: Fits 240mm, 280mm, 360mm, or 420mm radiators (or 3x 120mm, 3x 140mm, or 2x 200mm fans).
- Top Mount: Fits 240mm, 280mm, 360mm, or 420mm radiators (or 3x 120mm or 3x 140mm fans).
- Side Mount: Fits 240mm, 280mm, 360mm, or 420mm radiators (or 3x 120mm or 3x 140mm fans).
- Rear Mount: Fits a 120mm or 140mm radiator (or 1x 120mm or 1x 140mm fan).
Removable dust filters located on the front, bottom, and right side panels guard internal components against debris build-up over long-term operation.
Clean hidden-cable builds with reverse-connector motherboard support
Built to accommodate standard Mini-ITX, Micro-ATX, ATX, and large E-ATX motherboards up to 305mm x 277mm, the chassis tray also features precise cutouts for reverse-connector motherboard standards. Full compatibility with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth ecosystems allows power cables, fan headers, and front panel connectors to plug directly into the rear of the motherboard, keeping the main chamber visually uncluttered.
Generous 425mm clearance for modern high-end graphics cards
The interior architecture offers expansive component headroom to fit multi-slot graphics cards and tall air coolers without interference:
| Maximum GPU Length | 425 mm (with front fans installed) |
| Maximum CPU Cooler Height | 175 mm |
| Maximum PSU Length | 250 mm (ATX format) |
| Expansion Slots | 8 Horizontal or 3 Vertical |
| 2.5-inch Drive Bays | 4 |
| 3.5-inch Drive Bays | 1 |
With eight horizontal expansion slots and three vertical slots, builders can orient heavy graphics cards upright using a compatible riser cable for display through the tempered glass side panel.
High-speed front connectivity and 42mm of dedicated cable routing
Cable routing is straightforward thanks to a 42 mm clearance channel behind the motherboard tray, allowing thick power cables and fan hubs to tuck away cleanly behind the steel side panel. The top-front I/O array provides modern connectivity options for high-speed peripherals:
- 1x USB 3.2 Gen 2x2 Type-C port
- 2x USB 3.2 Gen 1 Type-C ports
- 1x 3.5 mm Headphone/Microphone combo audio jack
The chassis is backed by a 2-year manufacturer warranty.
