Engineered for high-performance, clean white PC builds

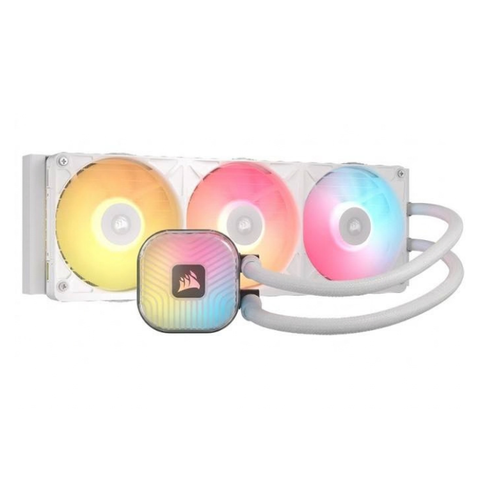

Matching white component builds requires strict attention to detail across the chassis interior. The TITAN II 360 RX RGB features an all-white radiator, white pump housing, and white 450 mm sleeved low-permeation rubber tubing. The extended tubing length ensures clean routing through larger mid-tower and full-tower PC cases without placing undue tension on the copper cold plate or pump fittings.
FlowDrive Gen 2 pump engine drives efficient heat removal
At the core of the cooling loop is Corsair's FlowDrive Gen 2 pump engine. Coupled with a high-conductivity copper cold plate, the pump rapidly circulates coolant through the 394 x 120 x 27 mm aluminium radiator to handle heavy multi-threaded workloads and high CPU clock speeds. The high-flow design maintains stable temperatures during prolonged render tasks or long gaming sessions without thermal throttling.
iCUE LINK RX360 II Unified Frame fan system delivers targeted static pressure
Active cooling is managed by the integrated iCUE LINK RX360 II Unified Frame fan array measuring 360 x 129 x 26 mm. Utilizing durable Magnetic Dome bearings, the fan system operates smoothly across a wide speed range of 400 to 2,100 RPM (+/- 10%). This design delivers precise airflow and static pressure tuned specifically for dense radiator fins:
- Airflow output: Scales from 14.12 CFM up to 64.7 CFM under maximum system load.
- Static pressure: Generates between 0.21 and 3.57 mm-H2O to push air through the 27 mm thick radiator core.
- Acoustic performance: Maintains low noise levels starting at 10 dBA during light desktop tasks, reaching a maximum of 32.8 dBA at full RPM.
Streamlined system integration with iCUE LINK architecture
Traditional liquid coolers often require multiple PWM fan headers, RGB lighting splitters, and separate pump cables that clutter the motherboard tray. The TITAN II 360 RX RGB utilizes the Corsair iCUE LINK architecture, transmitting both power and data through a single unified cable network. This drastically reduces visible cabling behind the motherboard tray while providing complete RGB lighting and speed customisation through the iCUE software interface.
Broad platform support backed by a 6-year warranty
Out of the box, the TITAN II 360 RX RGB includes mounting hardware designed for current-generation desktop processor sockets, ensuring straightforward installation for both Intel and AMD systems.
| Intel Socket Support | LGA 1851, LGA 1700 |
| AMD Socket Support | AM5, AM4 |
| Cold Plate Material | Copper |
| Radiator Dimensions | 394 x 120 x 27 mm |
| Tubing Length & Material | 450 mm Sleeved Low-Permeation Rubber |
| Manufacturer Warranty | 6 Years |
