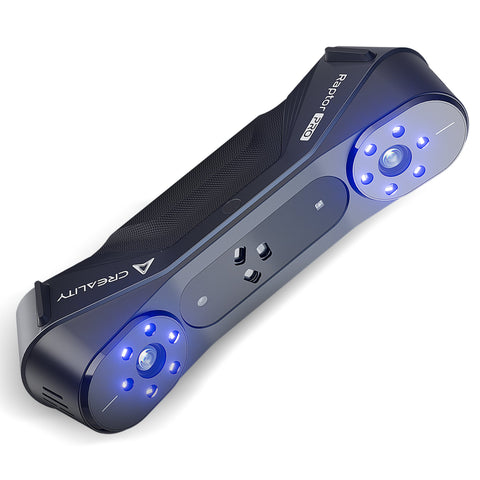

The Creality Raptor Pro is a high performance professional 3D scanner designed for industrial grade precision and speed. Featuring 22 cross laser lines, 7 parallel laser lines and advanced NIR structured light technology, it captures highly detailed scans with exceptional efficiency. With speeds up to 60fps and 660,000 points per second, the Raptor Pro handles objects from 5mm to 4000mm with ease. It can also scan black and metal surfaces without sprays while 24 bit full colour scanning preserves realistic textures and fine detail for professional workflows.

Key-Features:

• Features:
• 22 cross laser lines for detailed scanning
• 7 parallel laser lines for broad area capture
• NIR structured light scanning technology
• High scanning speed up to 60fps
• Captures up to 660,000 points per second
• Volumetric accuracy of 0.02mm + 0.08mm/m
• Scans objects from 5mm to 4000mm
• Scan black and metal objects without sprays
• NIR full colour scanning up to 30fps
• 24 bit full colour texture capture
• Suitable for industrial inspection, reverse engineering and professional modelling
• Specifications/Attributes:
• Scanning Mode: 7 Blue Parallel Laser Lines, 22 Cross Blue Parallel Laser Lines and NIR (Infrared Binocular Structured Light)
• Accuracy Up To: 0.02mm and 0.0075mm
• Volumetric Accuracy: 0.02mm+0.08mm/m and 0.075mm+0.1mm/m
• Scanning Rate: 420,000 measurements/s, 660,000 measurements/s and 3,580,000 measurements/s
• Single Capture Range:
• 270mm x 170mm at 300mm
• 270mm x 170mm at 300mm
• 341mm x 232mm at 400mm
• 397mm x 290mm at 500mm
• 630mm x 550mm @1000mm
• Working Distance: 160mm to 400mm, 200mm to 550mm and 170mm to 1000mm
• Outdoor Scanning: Below 50,000 lux, Below 10,000 lux and Below 30,000 lux
• System Support:
• Windows 10/11 (64 bit), Intel i7-Gen10 and above, Nvidia graphics card (8GB VRAM and above), 32GB RAM and above.
• Minimum: Intel i7-Gen7, Nvidia graphics card (6GB VRAM), 16GB RAM.
• macOS Support: 11.7.7 and above, Apple M1/M2/M3 series processors
• RAM: 16GB and above
• Wireless Scanning: Supported (wireless scanning accessories not included)
• Note: Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration and other factors.

Package Includes:

• 1 Creality Raptor Pro 3D Scanner
