SPECIFICATIONS:
Product Type |

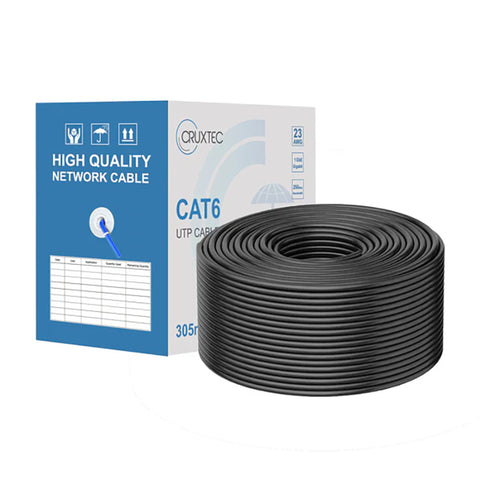

Cat6 UTP Bulk Ethernet Cable |
Conductor Material |
100% Oxygen-Free Copper (OFC) |
Conductor Gauge |
23 AWG Solid |
Insulation Material |
HDPE (High-Density Polyethylene) |
Jacket Material |
Flame-Retardant PVC |
Overall Diameter (OD) |
6.2 mm ±0.2 mm |
Cable Length |
305m (1000ft) / Reelex Pull Box |
Transmission Frequency |
Up to 600 MHz |
Performance Testing |
Fluke Passed (100m Channel Test) |
PoE Support |
PoE / PoE+ / PoE++ (IEEE 802.3bt) |
Standards Compliance |
ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50288, NEC Compliant, TAA |
