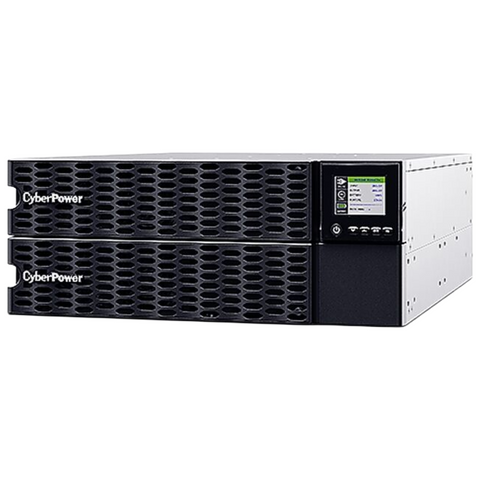

CP OL10000VA Rack Tower UPS

Features:

Phase: Single Phase
Form Factor: Rackmount / Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 98%
Generator Compatibility: Yes
Input Voltage Range: 200 240v
Input Frequency: 50 ± 10 | 60 ± 10
Input Frequency Detection: Autosensing
Rated Input Current: 54a
Input Connector Type: Hardwire Terminal Block
Output Capacity (VA): 10000
Output Capacity (Watts): 10000
On Battery Waveform: Pure Sine Wave
Overload Protection: Internal Current Limiting / Circuit Breaker
Overload Protection (Line Mode): 105125% Load for 1 min / 125150% Load for 10 sec
Overload Protection (Battery Mode): 105130% Load for 10 sec / 130150% Load for 2 sec
Overload Protection (Bypass Mode): Circuit Breaker
Crest Factor: 3 : 1
No. of Outlets: 11
Battery Runtime at Half Load: 8.3 Mins
Battery Runtime at Full Load: 2.4 Mins
Typical Recharge Time: 4 Hours
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Builtin Battery Management Module: Yes
Userreplaceable: Yes Qualified Personnel Only
Hotswappable: Yes
Battery Type: Sealed Leadacid
Replacement Battery Pack (RBP): RBP0159
Battery Voltage: 192v
Compatible Extended Battery Module (EBM): BPE192VL2U01 (Builtin Charger)
Surge Suppression: 2430 Joules
Serial Port: Combo (RS232 + Dry Contact)
SNMP/HTTP Remote Monitoring: Yes RMCARD205 included
Dimensions: 433 x 173 x 720mm
Weight: 71.2kg
Certifications: CE / EAC / RCM
RoHS: Yes
SKU OL10KERTHD
