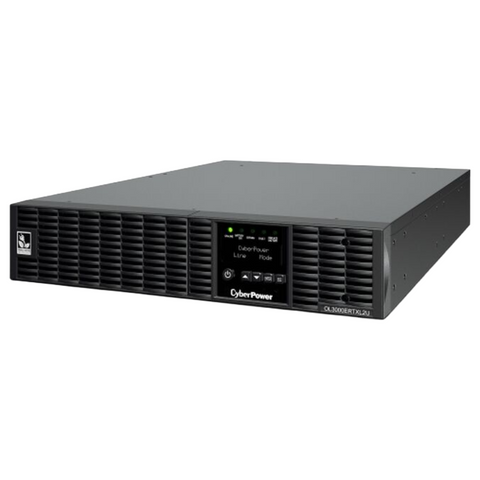

CP OL3000VA Rack Tower UPS

Features:

Online (Double Conversion) UPS Topology
Generator Compatible
Critical/Non-critical Load Outlets
Smart Battery Management (SBM)
Extended Battery Module (EBM)
EMI and RFI Filtration
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
ECO Mode
Overload Protection
Zero Transfer Time
Hot-swappable Batteries
Surge and Spike Protection
Phone/Fax/Modem/DSL/Network Protection
Detachable LCD Panel
PowerPanel Management Software
Rack/Tower Convertible Configurations

Phase: Single Phase
Form Factor: Rackmount / Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency
Generator Compatibility: Yes
Input Voltage Range ( Vac ): 190 - 300
Input Frequency: 50 +/- 10 | 60 +/- 10Hz
Rated Input Current ( A ): 15
Input Power Factor: 0.99
Input Connector Type: IEC C20
Detachable Power Cord Plug Type: IEC C19 x 1
Power Cord Length: 3m
Capacity (VA): 3000
Capacity (Watts): 2700
Power Factor: 0.9
Overload Protection: Internal Current Limiting, Circuit Breaker
Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
Harmonic Distortion (Linear Load): THD 3%
Harmonic Distortion (Non-linear Load): THD 5%
Internal Bypass: Automatic Bypass, Manual Bypass
Outlet(s) - Total: 9
Outlet Type: IEC C13 x 8 | IEC C19 x 1
Outlet(s) - Battery & Surge Protected: 9
Outlet(s) - Critical Load (CL): 5
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 11
Runtime at Full Load ( min ): 3
Typical Recharge Time ( Hours ): 5
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Hot-swappable: Yes
Battery Cartridge (RBP): RBP
Compatible Extended Battery Module (EBM): BPE72V60ART2US
Max. EBM Quantity ( pcs ): 10
Surge Suppression ( Joules ): 1335
EMI/RFI Filtration: Yes
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 88 x 600mm
Weight: 32kg
Audible Noise at 1.5M from Surface of Unit: 55 dBa
Certifications: CE | BSMI | C-Tick | RoHS
Warranty: 2 Years
SKU OL3000ERTXL2U
