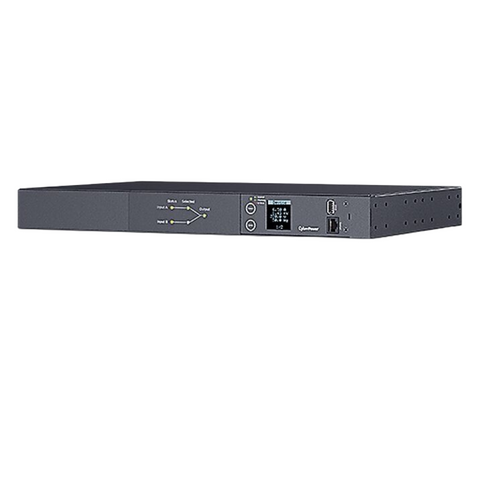

CP Metered ATS 10amp

Features:

What's in the box?

1 x PDU24004

1 x User Manual

1 x Cord Retention Tray

1 x Mounting Brackets

1 x Cable Ties

1 x Screw Kit

1 x Power Cord

1 x Serial Cable

Phase: Single Phase
Dual Power Inputs: Yes
Nominal Input Voltage ( Vac ): 200 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 12 (UL) | 10 (CE)
Overload Protection: Circuit Breaker
Input Connector Type: IEC C14 x 2
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Outlets # of Bank(s): 1
Outlet(s) Total: 12
Outlet(s) Rear: 12
Outlet Type: IEC C13 x 12
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Serial Number | Hardware Version | Firmware Version
Hotswappable LCD Module: Yes
LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Source Status | Load
Connectivity Port: RJ45 (for Serial)
Userupgradeable Firmware: Yes
Installed Rack Height (U): 1
Form Factor: 1U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 1 Set
Dimensions: 433 x 44 x 215mm
Weight: 3.5kg
Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
SKU PDU24004
