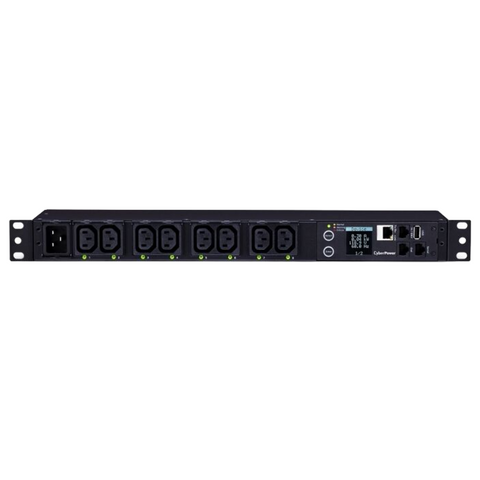

CP Switched MPO ePDU 16Amp

Features:

Realtime Local/Remote Monitoring and Switching of Individual Outlet
Work under High Temperature
±1% Measurement Accuracy
Digital Realtime Load Display
Hotswappable LCD Design
LED Status Indicator
Supports ENVIROSENSOR
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Ultra Low Power Consumption
Industrialgrade Metal Housing
User Configurable Color LCD
Rotatable LCD for Proper Display Orientation
Firmware Upgrade via USB
Userupgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking

What's in the box?

1 x PDU81005

1 x User Manual

1 x Cord Retention Tray

1 x Mounting Brackets

1 x Cable Ties

1 x Screw Kit

1 x Power Cord

1 x Serial Cable

Phase: Single Phase
Nominal Input Voltage ( Vac ): 100 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 16
Input Connector Type: IEC C20 x 1
Power Cord Length: 3.05
Output Voltage ( V ): Depends on Input
Idle Power Consumption ( W ): < 5
Outlets # of Bank(s): 1
Outlet(s) Total: 8
Outlet(s) Front: 8
Outlet Type: IEC C13 x 8
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
Hotswappable LCD Module: Yes
Auto LCD Orientation: Yes
LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
LED Indicators: PDU Status | Tx/Rx | Link | Outlet
Outlet Metering Capability: ± 1%
Atype USB Port: Yes
Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
Userupgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for smallmedium scale management) | PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
Authentication: RADIUS | LDAP | LDAPS | Windows AD
Installed Rack Height (U): 1
Form Factor: 1U Vertical Rackmount | 1U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 2 Set (Lshort | Llong)
Dimensions: 433 x 44 x 112mm
Weight: 2.1kg
Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A | RoHS
Warranty: 2 Years
SKU PDU81005
