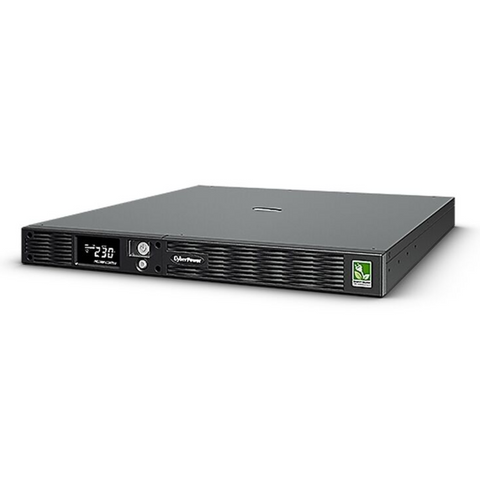

CyberPower Pro 1000VA Rack UPS

What's in the box?

1 x PR1000ELCDRT1U UPS

1 x Rackmount Ears

1 x Screw Kit

1 x Power Cord

1 x USB Cable

1 x Serial Cable

1 x EPO Cable

1 x User Manual

Features:

Lineinteractive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Critical/Noncritical Load Outlets
Surge and Spike Protection
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Hotswappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations

Phase: Single Phase
Form Factor: Rackmount | Tower
UPS Topology: Lineinteractive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
Input Voltage Range ( Vac ): 160 286
Adjustable Voltage Range ( Vac ): 150 300 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Autosensing
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU x 1
Power Cord Length: 3m
Capacity (VA): 1000
Capacity (Watts): 800
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5 % | 230 ± 5 % | 240 ± 5 %
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 0.8
Automatic Voltage Regulation (AVR): Double Boost | Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) Total: 6
Outlet Type: IEC C13 x 6
Outlet(s) Battery & Surge Protected: 6
Outlet(s) Critical Load (CL): 2
Outlet(s) NonCritical Load (NCL): 4
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 12
Runtime at Full Load ( min ): 3.1
Typical Recharge Time ( Hours ): 6
Start On Battery: Yes
Userreplaceable: Yes
Hotswappable: Yes
Battery Cartridge (RBP): RBP0027
Battery Cartridge (RBP) Quantity ( pcs ): 1
Surge Suppression ( Joules ): 810
EMI/RFI Filtration: Yes
LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning
LCD Setting & Control: Alarm Setting | Input & Output | Battery Setting
LED Indicators: Power On
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode | Low Battery | Overload | Overcharge | Overheat
Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | Serial Cable x1 | EPO Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes with optional RMCARD205
PowerPanel Cloud Service: Yes 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Ears: Yes
Dimensions: 430 x 44 x 490mm
Weight: 18kg
Installed Rack Height ( U ): 1
Online Thermal Dissipation ( BTU/hr ): 72
Certifications: CE | CTick | EAC | RoHS
Warranty: 3 Years
SKU PR1000ELCDRT1U
