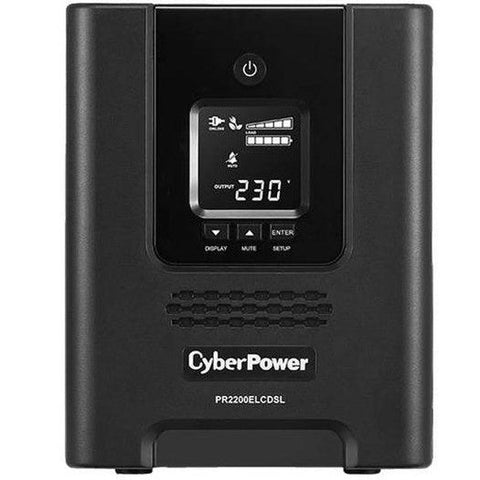

CyberPower PR2200ELCDSL LineInteractive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It?s typically integrated in the back office, server room, and data center environment.

The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform realtime monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.

Features:

Lineinteractive UPS Topology
Active PFC Compatible
Automatic Voltage Regulation (AVR)
Hotswappable Batteries
EMI and RFI Filtration
USB Connectivity Port
PowerPanel Management Software
Tower Form Factor
Energy Saving Technology
Pure Sine Wave Output
Overload Protection
Surge and Spike Protection
LCD Status Display
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability

Form Factor: Tower

UPS Topology: Lineinteractive

Energy Saving Technology: GreenPower UPS Bypass Technology

Energy Star Qualified: Yes

Nominal Input Voltage ( Vac ): 230

Input Voltage Range ( Vac ): 151 296

Input Frequency ( Hz ): 50 ± 3 | 60 ± 3

Input Frequency Detection: Autosensing

Rated Input Current ( A ): 10

Input Connector Type: IEC C14 ?

Detachable Power Cord Plug Type: AU x 1 | IEC C14 x 1

Power Cord Length: 3.05m

Output Capacity (VA): 2200

Output Capacity (Watts): 1980

On Battery Waveform: Pure Sine Wave

On Battery Voltage(s) ( Vac ): 230 ± 10%

On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%

Automatic Voltage Regulation (AVR): Double Boost, Single Buck

Overload Protection: Internal Current Limiting, Circuit Breaker

Outlet(s) Total: 8

Outlet Type: IEC C13 x 8

Outlet(s) Battery & Surge Protected: 8

Typical Transfer Time ( ms ): 4

BATTERYRuntime at Half Load ( min ): 12

Runtime at Full Load ( min ): 3

Typical Recharge Time ( Hours ): 8

Start On Battery: Yes

Userreplaceable: Yes

Hotswappable: Yes

Battery Type: Sealed Leadacid

Battery Cartridge (RBP): RBP0116

Battery Cartridge (RBP) Quantity ( pcs ): 1

Surge Suppression ( Joules ): 405

EMI/RFI Filtration: Yes

LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log

LED Indicators: Power On

HID Compliant USB Port(s): 1

Emergency Power Off (EPO) Port: Yes

Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs ): Power Cord x5, USB Cable x1, EPO Cable x1

Power Management Software: PowerPanel Business (Recommended)

SNMP/HTTP Remote Monitoring: Yes with optional RMCARD205

Enclosure Construction: Metal

Dimensions: 170 x 221 x 432

Weight: 25.5kg

Online Thermal Dissipation ( BTU/hr ): 155

Certifications: CE | RCM

RoHS: Yes

Product Warranty: 3 Years

Battery Warranty: 2 Years

SKU PR2200ELCDSL

Colour Black
