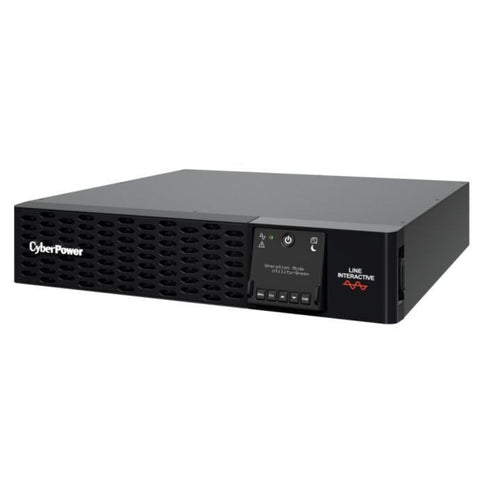

CyberPower PR1000ERTXL2U guarantees power backup protection for home theatre, multimedia, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. UPS uses lineinteractive topology.

Features:

Lineinteractive UPS Topology
Active PFC Compatible
Toolless Battery Replacement
Automatic Voltage Regulation (AVR)
Critical/Noncritical Load Outlets
Hotswappable Batteries
Surge and Spike Protection
LCD Status Display
Serial Connectivity Port
PowerPanel Management Software
Rack/Tower Convertible Configurations
Energy Saving Technology
Pure Sine Wave Output
High Output Power Factor
Overload Protection
Quick Charging Technology
Extended Battery Module (EBM)
EMI and RFI Filtration
USB Connectivity Port
Emergency Power Off (EPO) Port
SNMP/HTTP Remote Management Capability (Optional)

Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Lineinteractive
Energy Saving Technology: GreenPower UPS Bypass Technology
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 ~ 288
Adjustable Voltage Range ( Vac ): 151 ~ 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Autosensing
Rated Input Current ( A ): 10
Input Connector Type: IEC C14
Power Cord Length (m.): 3.05
Output Capacity (Watts): 1000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker
Outlet(s) Total: 10
Outlet Type: IEC C13 x 10
Outlet(s) Battery & Surge Protected: 10
Outlet(s) Critical Load (CL): 5
Outlet(s) NonCritical Load (NCL): 5
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 21.3
Runtime at Full Load ( min ): 7.9
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Userreplaceable: Yes
Hotswappable: Yes
Battery Type: Sealed Leadacid
Battery Cartridge: RBP0128
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U01 (Builtin Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1in, 1out
LCD Orientation: Rotatable LCD via Setting
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): Power Cord x2, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes with optional RMCARD205
PowerPanel Cloud Service: Yes 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 412mm
Weight: 23.6kg
Certifications: CE, FCC Class B, UL, RCM, VCCI
SKU PR1000ERTXL2U
