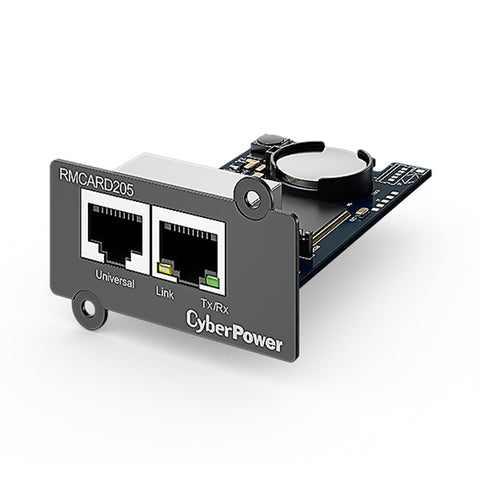

CyberPower SNMP Card to Suites PRO Series UPS and Envirosensor

CyberPower RMCARD205 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the SNMP/HTTP network slot on the UPS, users can remotely monitor and control the devices in a back office, server room, or data center via standard web browsers, the network management system (NMS), or command line interface (SSH and Telnet) on their network. They can also perform management tasks including scheduled shutdowns, startups, and reboots.

When a power issue occurs, administrators will be notified immediately via e-mail, SNMP traps, and SMS. By utilizing the auto-shutdown software, servers and workstations stay protected from data loss due to power failure. Event logging tracks the operational history of the UPS. With its hot-swappable capability, the system can remain ON for connected equipment when service personnel perform on-site installation or replacement. With its multi-language interface, users can choose their preferred language for easy management.

Plug-and-play Installation
Command Line Interface Supported
Automatic Event Notifications
User-upgradeable Firmware
Secure Authentication
User-friendly Web Interface
Remotely Schedule Shutdown/ Start-up/ Reboot of the UPS
Multi-language Supported
Syslog Supported
Compatible with Environmental Sensor

SPECIFICATIONS:

MANAGEMENT & COMMUNICATIONS
LED Indicators	Tx/Rx, Link
Connectivity Port	RJ45, RJ45 (for Environmental Sensor)
Data Link Protocol	Ethernet 100Base-TX, Ethernet 10Base-T
Support Plug-and-play Installation	Yes
Power Management Software	PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)
User-upgradeable Firmware	Yes
Remote Management	Web Browser, Command Line Interface, NMS
Local Management	Web Interface, Command Line Interface
Event Notifications	E-mail, SNMP Traps, Syslog, SMS
Supported Protocols	IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SMTPS, SSH, SSL, TLS, Telnet, FTP, SCP, Syslog and Modbus TCP
Authentication	RADIUS, LDAP, LDAPS, Windows AD
Multi-language Supported	Chinese (Traditional), Chinese (Simplified), English, French, German, Spanish
Environmental Sensor Supported	Yes
PHYSICAL
Color	Blue
Dimensions (WxHxD) (in.)	2.13 x 1.42 x 3.00
Dimensions (WxHxD) (mm.)	54 x 36.1 x 76.5
Weight (lbs.)	0.08
Weight (g.)	38
ENVIRONMENTAL
Operating Temperature ( °F)	32 ~ 104
Operating Temperature ( °C)	0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )	0 ~ 90
Operating Elevation ( feet/meters )	0-9,843 feet (0-3,000 meters)
Storage Temperature ( °F)	14 ~ 122
Storage Temperature ( °C)	-10 ~ 50
Storage Relative Humidity (Non-condensing) ( % )	0 ~ 95
Storage Elevation ( feet/meters )	0-49,213 feet (0-15,000 meters)
CERTIFICATIONS
Certifications	CE, FCC Class A, EAC
RoHS	Yes
OTHERS
What s in the Box	RMCARD205 Quick Start Guide Spare Jumper Serial Cable * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
