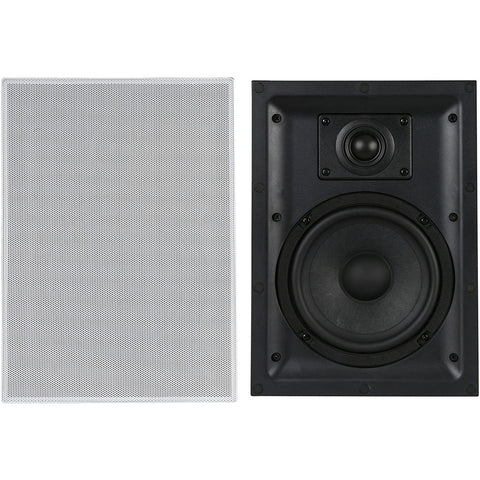

DLS IW 2.4 is a new square In-wall model in small size for easy installation where space is limited.

The speakers are made with only high class components making them suitable for use in most environ ments. Use as extra speakers in your kitchen or bath room. They can also be used as surround speakers in home cinema. If you have a surround amplifier with multi room function these speakers are very well suited for this application.

IW 2.4 has a high class 25 mm silk dome tweeter with neodymium magnet system. The passive filter splits the signal between bass & tweeter.

The speaker has selectable tweeter level in two steps.

With magnetic grille.

Comes in pairs.

Specifications

• Description / type 2-way square speaker
• Impedance 4 ohm
• Sensitivity 86 dB (1W/1m)
• Frequency range 70 - 23 000 Hz
• Recommended amplifier 20 - 90 Watt
• Tweeter 25 mm soft dome
• Woofer size 10 cm / 4"
• Cone material Paper with rubber surround
• Outer dimensions 248 x 159 mm / 9,77 x 6,26"
• Cutout dimensions 215 x 125 cm / 8,46 x 4,92"
• Mounting depth 80 mm / 3,15"
• Baffle thickness 10-40 mm / 0,4 - 1,58"
• Finish / colour White RAL9003, black frame.
• Off-axis angle +- 45 degrees in distributed audio systems
• Weight 1,65 kg / 3,64 lbs
