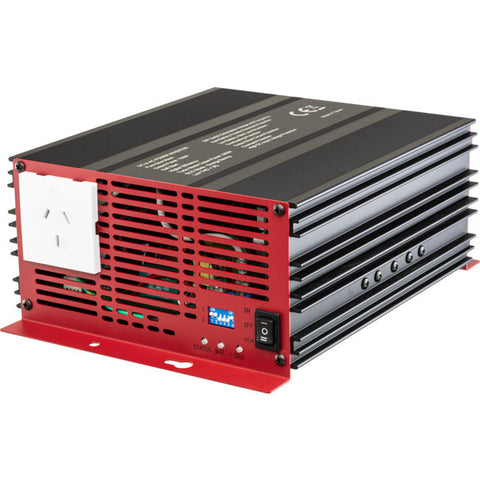

700W TRUE SINE WAVE INVERTER This is a state-of-the-art DC to AC pure sine wave power inverter. With advanced digital signal processing technology, the power inverter has multiple functions such as power turbo mode, power-saving mode, adjustable output voltage / frequency, fan speed control etc. The power inverter has outstanding protection included input DC polarity reversed protection, input DC over/under voltage protection, internal over-temperature protection, overload protection and output short circuit protection. With RS232 communication port, it can be easily monitor the status of the power inverter. Three types of remote controls available as optional accessories, regular or with LCD display, or Bluetooth ( Android system only)

Features:
DC input polarity reversed protection: no components will be damaged;
Input DC over/under voltage protection;
Internal over-temperature protection;
Output overload protection;
Output short circuit protection;
Adjustable AC output voltage and frequency;
Fan speed control;
High efficiency: max up to 93%;
With RS232 communication port;
With dry contact terminal;
Optional remote LCD controller;
Optional regular remote controller;
Optional Bluetooth remote controller;
(Android system only)

Specifications:
Capacity: 700W
Output Power
Continuous: 700W
Surge: 1400W
Turbo Mode: 840W
Output Voltage: 200VAC / 220VAC / 230VAC / 240VAC (Dip Switch Selectable)
Output Frequency: 50Hz / 60Hz (Dip Switch Selectable)
Wave Form: Pure Sine Wave
(Normal Voltage * 1.1)

Input Voltage Range
12VDC 10.5VDC ~ 16.5VDC
24VDC 21.0VDC ~ 33.0VDC

Max Efficiency
12VDC 92%
24VDC 93%
No Load Power Consumption

High Battery Alarm
12VDC 16.0VDC
24VDC 32.0VDC
Protection DC Input Polarity Reversed / DC UnderVoltage / DC Over Voltage / Output Short Circuit / Overload / Over Temperature
Environment Operating Temperature Storage Temperature Humidity -20 ? C ~ 60 ? C (De-rating Begin 40 ? C ~ 60 ? C) -30 ? C ~ 70 ? C 95%, non-condensing
Dimension (L * W * H) mm 210*187*96
Weight (kgs) 2.5
Remote Control (Option) Yes
GFCI (Option) Yes
*GFCI receptacles
