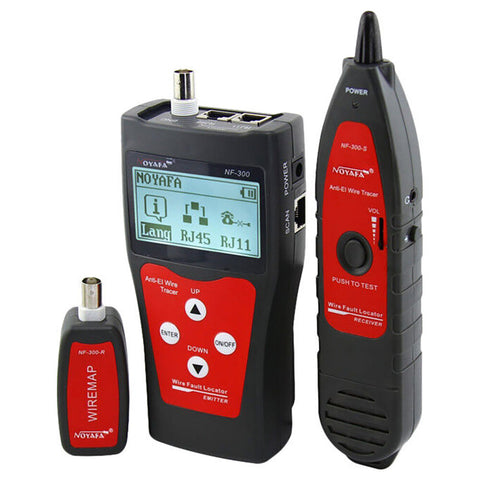

Doss NF300 Network Coax Cable Tester Portable For RJ45/RJ11/USB/BNC Black

Doss NF-300 is a multifunction network coax cable tester. Itincludes remote wire map and tone tracer. It also features aporting flashing function for cable identifying on switch.

Features:

Enables cables to be located even when totally concealed
Memory and storage function
LCD Screen shows test result clearly
RJ45, RJ11, USB and BNC cable testing
Port flashing function
Cable length testing
Cable fault testing
Headphone jack on tone tracer
LCD screen
Voltage protection

Specifications
NF-300 Transmitter specifications
LCD screen: 53x25mm
Tone frequency: 225kHz
Trace cable coonected to switch: Anti-jamming
Tone mode: 2 Tones, adjustable
Compatible with connectors: RJ11, RJ45, BNC, USB
Cable map indication: Pin #1- #8
Shielded indication: # G
Voltage protection: AC 60V/DC 42V
Low battery display: LCD (6.5V)
Battery type: DC9.0V (NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD): 185x80x32mm

NF-300 Receiver specifications
Frequency: 225kHz
The Max. working current: Less than 70mA
Battery type: DC9.0V (NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD): 218x46x29mm

NF-300 Remote unit specifications
Compatible with connectors: RJ45, BNC
Dimensions (LxWxD): 107x30x24mm

Accessories Included:
1x Earphone Set
1x Telephone line adapter Set
1x Network cable adapter Set
1x Cable clips Set

Includes:
1 x Cable Tester
