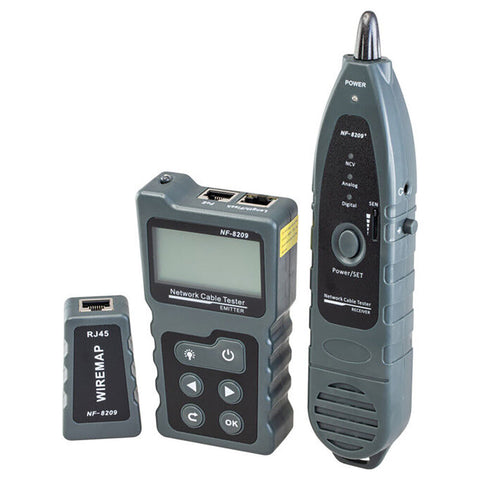

Doss NF8209 Multifunction Cable Tester For CAT5e/CAT6/STP/UTP/LAN Black

Features

POE information testing: Identifying which pins are providing power and detect how much voltage, and which type of the PSE (at/af standard) from DC range 5V to 60V standard or non-standard POE switch.
Featured with the new generation to offer AC filter and analog signaling all in one network toner and probe, there are three cable scan options to track cable like Digital mode analog mode and PoE mode, which means it’s equipped with the most powerful cable location technologies for any work environment.
Cable continuity testing. Test physical status forCat5e/Cat6, Cat6a STP, UTP LAN cable such as open, short or cross.
Measure cable length and locate fault distance for LANcable from the range up to 200m.
Hub blink, Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
NCV, Non-Contact Voltage, Detect AC voltage presence 50V-1000V.
Lamp

Specifications

Transmitter
Wiremap
Cable type: CAT5e, CAT6, CAT6a (STP & UTP)
Test with switch directly: Yes
Max range: 600m

Length
Cable type: CAT5e, CAT6, CAT6a (STP & UTP)
Test range: 2~200m
Accuracy: ±1.6m
Breakage location: Yes

Scan
Cable type: CAT5e, CAT6, CAT6a (STP & UTP)
Max. signal voltage: 8Vp-p
Frequency: 130KHz
AC filter: Yes
Max range: 600m

POE
Test range: DC 5~60V standard / non-standard PoE switch
Voltage display: Yes
PSE type: IEEE 802.3af/at

LCD display: 12864 Dot-matrix with backlight
Power supply: AAA3
Low battery warning: 2.7V
Auto-off time: 15min / 30min / 60min / OFF
Max working current: <150mA

Receiver
Sensitivity adjustable: Yes
AC Voltage detecting: Yes
Lamp: Yes
Battery type: 9V*1
Low battery warning: 6±0.5V
Max working current: <100mA

Remote
Wiremap Port: RJ45

What is in the box?

Emitter x 1pc
Receiver x 1pc
Wiremap remote x 1pc
Earphone x 1pc
Cable adaptor x 1 set
9V battery x 1pc
AAA battery x 3pcs
Carry bag x 1pc
User manual x 1pc

Includes:
1 x Cable Tester
