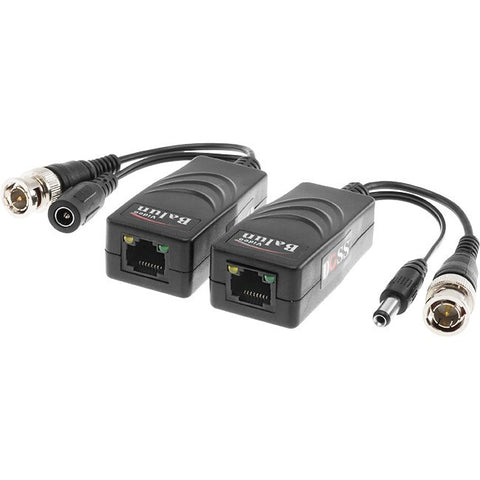

The Doss VPB45PCDHD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effective UTP unshielded Twisted Paired cable.

The Doss VPB45PCDHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminate costly and bulky coaxial cable.

The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. Also, it has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

Key Features:

• Convert 28V-36V DC to regulated 12VDC at camera

• Color video up to 1312ft(400m) via UTP cat5e/6

• Compatible with all HD-TVI, HD-CVI, AHD&CVBS analogue cameras

• RJ45 jack for UTP cable

• Real-time transmission

• NTSC,PAL& SECAM video format compatible

• Exceptional interference rejection

• Built-in TVS(Transient Voltage Suppressors) for surge protection

• 50dB crosstalk and noise immunity

• Wave filter design Anti-static design

• Compact size and easy installation

• ABS engineering housing
